0. 序

  全文较长，为方便，添加序：

• 0. 序
• 1. 前言
  • 1.1. C++
• 2. 微观
  • 2.1 NSObject
  • 2.2 objc_object
  • 2.3 isa_t
    • 2.3.1 Tagged Pointer
    • 2.3.2 nonpointer isa
  • 2.4 objc_class
  • 2.5 SideTable
• 3. 宏观
  • 3.1 Reference count
  • 3.2 SEL & IMP
  • 3.3 Property
  • 3.4 Extension & Category
  • 3.5 Association object
  • 3.6 Autoreleasepool
• 4. ObjC初始化流程

1. 前言

  广泛地，iOS开发者都会以objc是C++的超集来作为这门语言的入门描述。

1.1. C++

  在前言里，对于涉及到的C++特性，如下：

1. Struct与Class，
   1. 同：可继承、多态、包含成员函数
   2. 异：
      1. Struct默认plublic
      2. Class默认private且可使用泛型模版等
2. typedef类型定义符

    struct a {
        int data
    };

    // v1等效
    typedef struct a A;
    struct a v1;
    A v1;

    // v2等效
    typedef struct a *A_P;
    struct a *v2
    A_P v2;


3. using type = other_type;可理解为类型别名

2. 微观

  从NSObject到objc_object，细节都在这里。

2.1 NSObject

  声明关联路径：Public Headers/NSObject.h

  实现关联路径：Source/NSObject.mm

  对应地，Xcode内最新的声明文件位于以下路径内。

/Applications/Xcode.app/Contents/Developer/Platforms/iPhoneOS.platform/Developer/SDKs/iPhoneOS.sdk/usr/include/objc/

#ifndef _OBJC_NSOBJECT_H_
#define _OBJC_NSOBJECT_H_

#if __OBJC__

#include <objc/objc.h>
#include <objc/NSObjCRuntime.h>

@class NSString, NSMethodSignature, NSInvocation;

@protocol NSObject

/*
    ...
*/

@end


OBJC_AVAILABLE(10.0, 2.0, 9.0, 1.0, 2.0)
OBJC_ROOT_CLASS
OBJC_EXPORT
@interface NSObject <NSObject> {
#pragma clang diagnostic push
#pragma clang diagnostic ignored "-Wobjc-interface-ivars"
    Class isa  OBJC_ISA_AVAILABILITY;
#pragma clang diagnostic pop
}

/*
    ...
*/

@end

#endif

#endif

  在头文件中，可以看得出的关注点：

1. 可以发现关于NSObject，声明了一个protocol和一个interface，并且interface遵循同名protocol
2. 声明了是NSObject子类的3个类NSString, NSMethodSignature, NSInvocation，这是很特殊的，因为基类的方法与子类的类型有关系
3. 有若干个熟悉而陌生的类型，id, Class, SEL, IMP，它们是objc与runtime载体

  怀着这几点，通过内在实现，理解这些设计的目的。以下是NSObject.mm内的NSObject实现代码。

@implementation NSObject

/*
    ...
*/

// Replaced by CF (returns an NSMethodSignature)
+ (NSMethodSignature *)instanceMethodSignatureForSelector:(SEL)sel {
    _objc_fatal("+[NSObject instanceMethodSignatureForSelector:] "
                "not available without CoreFoundation");
}

// Replaced by CF (returns an NSMethodSignature)
+ (NSMethodSignature *)methodSignatureForSelector:(SEL)sel {
    _objc_fatal("+[NSObject methodSignatureForSelector:] "
                "not available without CoreFoundation");
}

// Replaced by CF (returns an NSMethodSignature)
- (NSMethodSignature *)methodSignatureForSelector:(SEL)sel {
    _objc_fatal("-[NSObject methodSignatureForSelector:] "
                "not available without CoreFoundation");
}

+ (void)forwardInvocation:(NSInvocation *)invocation {
    [self doesNotRecognizeSelector:(invocation ? [invocation selector] : 0)];
}

- (void)forwardInvocation:(NSInvocation *)invocation {
    [self doesNotRecognizeSelector:(invocation ? [invocation selector] : 0)];
}

+ (id)forwardingTargetForSelector:(SEL)sel {
    return nil;
}

- (id)forwardingTargetForSelector:(SEL)sel {
    return nil;
}


// Replaced by CF (returns an NSString)
+ (NSString *)description {
    return nil;
}

// Replaced by CF (returns an NSString)
- (NSString *)description {
    return nil;
}

+ (NSString *)debugDescription {
    return [self description];
}

- (NSString *)debugDescription {
    return [self description];
}

/*
    ...
*/

@end

  分别看看从声明中关注的点透露出什么信息：

1. interface与protocol中的声明，透露出的信息：
   1. interface含有
      1. 对象的初始化
      2. 消息的分发
   2. protocol含有ObjC里id、SEL、Class关系的标准方法声明
2. 3个在声明中的类NSString, NSMethodSignature, NSInvocation，在实现中是没有作用的，因为相关返回类型或参数类型在实现中并没有调用，并且可以看到一些类的方法实现，需要依赖CoreFoundation内的代码才有实现的意义
3. objc与runtime载体，id, Class, SEL, IMP，它们的声明在源码中是有分叉的，很容易让人迷惑。

  在NSObject.h引入的头文件objc.h中，有一份相关的声明，如下，作为一份对外声明的头文件来说，显然声明了id, Class, SEL, IMP这4个名字是什么数据类型的别名

#include <objc/objc-api.h>

// ...

#if !OBJC_TYPES_DEFINED
/// An opaque type that represents an Objective-C class.
typedef struct objc_class *Class;

/// Represents an instance of a class.
struct objc_object {
    Class _Nonnull isa  OBJC_ISA_AVAILABILITY;
};

/// A pointer to an instance of a class.
typedef struct objc_object *id;
#endif

/// An opaque type that represents a method selector.
typedef struct objc_selector *SEL;

/// A pointer to the function of a method implementation.
#if !OBJC_OLD_DISPATCH_PROTOTYPES
typedef void (*IMP)(void /* id, SEL, ... */ );
#else
typedef id _Nullable (*IMP)(id _Nonnull, SEL _Nonnull, ...);
#endif

  在NSObject.mm引入的头文件objc-private.h中，却有特别的引入头文件方式，如下，先引入objc-private.h，再引入NSObject.h。

1. NSObject.mm源码：

#include "objc-private.h"
#include "NSObject.h"

1. objc-private.h源码：

// ...
#ifdef _OBJC_OBJC_H_
#error include objc-private.h before other headers
#endif

#define OBJC_TYPES_DEFINED 1

// ...

struct objc_class;
struct objc_object;

typedef struct objc_class *Class;
typedef struct objc_object *id;

1. 如此一来，objc-private.h中定义的宏OBJC_TYPES_DEFINED，使得NSObject.mm中关于id, Class的别名声明不是使用objc.h中的，而是objc-private.h内的再次声明的别名了。
2. 从前面几个注意点可以看出，实际的这几个objc与runtime载体，有效的声明如下：

// 结构体声明别名
typedef struct objc_class *Class;
typedef struct objc_object *id;
// objc.h中的声明是有效的
typedef struct objc_selector *SEL;
// 声明 IMP 为类型别名的函数指针
// 第一个参数是 id 类型，即 struct objc_object *
// 第二个参数是 SEL 类型， 即 struct objc_selector *
// 后续参数可变
typedef id (*IMP)(id, SEL, ...);

2.2 objc_object

  通过上面看到的NSObject实现，可以发现，他们都在操作一种数据，就是objc_objcet。

  objc_objcet结构体的声明，位于objc-private.h文件中。

  objc_object结构体内的函数，内联部分实现位于objc-object.h文件中（引入于objc-private.h文件末尾，目的是优化内存管理，减少内存消耗），剩余部分位于NSObject.mm文件中。

  先来看objc-private.h中的声明，如下，关于objc_object我们需要了解的是isa是union isa_t类型的私有变量，objc_object对于内存的管理都与此变量有关。

struct objc_object {
private:
    isa_t isa;

public:

/*
    ...
*/
};

// Inlined parts of objc_object's implementation
#include "objc-object.h"

2.3 isa_t

  isa_t是个union，一方面各成员共用内存，节省内存空间，一方面出于优化内存目的而方便读取数据。位于objc-private.h，代码如下：

备注：本文提及的知识点仅限于arm64的iPhoneOS系统，其他平台有所差异。

#include "isa.h"

union isa_t {
    isa_t() { }
    isa_t(uintptr_t value) : bits(value) { }

    Class cls;
    uintptr_t bits;
#if defined(ISA_BITFIELD)
    struct {
        ISA_BITFIELD;  // defined in isa.h
    };
#endif
};

  对于isa_t，除了正常的64位指针，还有有2点重要的内存优化知识需要掌握:

1. Tagged Pointer
2. nonpointer isa

2.3.1 Tagged Pointer

参考文章：

1. https://blog.devtang.com/2014/05/30/understand-tagged-pointer/
2. https://juejin.cn/post/6844904132940136462

  Tagged Pointer的出现，使特定类型数据的内存存取获得了倍数级的提升。

  在objc-config.h中，可以看到决定是否支持使用Tagged Pointer的宏，如下，

// Define SUPPORT_TAGGED_POINTERS=1 to enable tagged pointer objects
// Be sure to edit tagged pointer SPI in objc-internal.h as well.
#if !(__OBJC2__  &&  __LP64__)
#   define SUPPORT_TAGGED_POINTERS 0
#else
#   define SUPPORT_TAGGED_POINTERS 1
#endif

  在objc-private.h中，可以看到一个头文件的引入，如下：

#include "objc-internal.h"

  在objc-internal.h头文件中，有Tagged Pointer的支持，如下：

// Tagged pointer objects.

#if __LP64__
#define OBJC_HAVE_TAGGED_POINTERS 1
#endif

#if OBJC_HAVE_TAGGED_POINTERS

// Tagged pointer layout and usage is subject to change on different OS versions.

// Tag indexes 0..<7 have a 60-bit payload.
// Tag index 7 is reserved.
// Tag indexes 8..<264 have a 52-bit payload.
// Tag index 264 is reserved.

#if __has_feature(objc_fixed_enum)  ||  __cplusplus >= 201103L
enum objc_tag_index_t : uint16_t
#else
typedef uint16_t objc_tag_index_t;
enum
#endif
{
    // 60-bit payloads
    OBJC_TAG_NSAtom            = 0,
    OBJC_TAG_1                 = 1,
    OBJC_TAG_NSString          = 2,
    OBJC_TAG_NSNumber          = 3,
    OBJC_TAG_NSIndexPath       = 4,
    OBJC_TAG_NSManagedObjectID = 5,
    OBJC_TAG_NSDate            = 6,

    // 60-bit reserved
    OBJC_TAG_RESERVED_7        = 7,

    // 52-bit payloads
    OBJC_TAG_Photos_1          = 8,
    OBJC_TAG_Photos_2          = 9,
    OBJC_TAG_Photos_3          = 10,
    OBJC_TAG_Photos_4          = 11,
    OBJC_TAG_XPC_1             = 12,
    OBJC_TAG_XPC_2             = 13,
    OBJC_TAG_XPC_3             = 14,
    OBJC_TAG_XPC_4             = 15,
    OBJC_TAG_NSColor           = 16,
    OBJC_TAG_UIColor           = 17,
    OBJC_TAG_CGColor           = 18,
    OBJC_TAG_NSIndexSet        = 19,

    OBJC_TAG_First60BitPayload = 0,
    OBJC_TAG_Last60BitPayload  = 6,
    OBJC_TAG_First52BitPayload = 8,
    OBJC_TAG_Last52BitPayload  = 263,

    OBJC_TAG_RESERVED_264      = 264
};
#if __has_feature(objc_fixed_enum)  &&  !defined(__cplusplus)
typedef enum objc_tag_index_t objc_tag_index_t;
#endif


// Returns true if tagged pointers are enabled.
// The other functions below must not be called if tagged pointers are disabled.
static inline bool
_objc_taggedPointersEnabled(void);

// Register a class for a tagged pointer tag.
// Aborts if the tag is invalid or already in use.
OBJC_EXPORT void
_objc_registerTaggedPointerClass(objc_tag_index_t tag, Class _Nonnull cls)
    OBJC_AVAILABLE(10.9, 7.0, 9.0, 1.0, 2.0);

// Returns the registered class for the given tag.
// Returns nil if the tag is valid but has no registered class.
// Aborts if the tag is invalid.
OBJC_EXPORT Class _Nullable
_objc_getClassForTag(objc_tag_index_t tag)
    OBJC_AVAILABLE(10.9, 7.0, 9.0, 1.0, 2.0);

// Create a tagged pointer object with the given tag and payload.
// Assumes the tag is valid.
// Assumes tagged pointers are enabled.
// The payload will be silently truncated to fit.
static inline void * _Nonnull
_objc_makeTaggedPointer(objc_tag_index_t tag, uintptr_t payload);

// Return true if ptr is a tagged pointer object.
// Does not check the validity of ptr's class.
static inline bool
_objc_isTaggedPointer(const void * _Nullable ptr);

// Extract the tag value from the given tagged pointer object.
// Assumes ptr is a valid tagged pointer object.
// Does not check the validity of ptr's tag.
static inline objc_tag_index_t
_objc_getTaggedPointerTag(const void * _Nullable ptr);

// Extract the payload from the given tagged pointer object.
// Assumes ptr is a valid tagged pointer object.
// The payload value is zero-extended.
static inline uintptr_t
_objc_getTaggedPointerValue(const void * _Nullable ptr);

// Extract the payload from the given tagged pointer object.
// Assumes ptr is a valid tagged pointer object.
// The payload value is sign-extended.
static inline intptr_t
_objc_getTaggedPointerSignedValue(const void * _Nullable ptr);

// Don't use the values below. Use the declarations above.

#if (TARGET_OS_OSX || TARGET_OS_IOSMAC) && __x86_64__
    // 64-bit Mac - tag bit is LSB
#   define OBJC_MSB_TAGGED_POINTERS 0
#else
    // Everything else - tag bit is MSB
#   define OBJC_MSB_TAGGED_POINTERS 1
#endif

#define _OBJC_TAG_INDEX_MASK 0x7
// array slot includes the tag bit itself
#define _OBJC_TAG_SLOT_COUNT 16
#define _OBJC_TAG_SLOT_MASK 0xf

#define _OBJC_TAG_EXT_INDEX_MASK 0xff
// array slot has no extra bits
#define _OBJC_TAG_EXT_SLOT_COUNT 256
#define _OBJC_TAG_EXT_SLOT_MASK 0xff

#if OBJC_MSB_TAGGED_POINTERS
#   define _OBJC_TAG_MASK (1UL<<63)
#   define _OBJC_TAG_INDEX_SHIFT 60
#   define _OBJC_TAG_SLOT_SHIFT 60
#   define _OBJC_TAG_PAYLOAD_LSHIFT 4
#   define _OBJC_TAG_PAYLOAD_RSHIFT 4
#   define _OBJC_TAG_EXT_MASK (0xfUL<<60)
#   define _OBJC_TAG_EXT_INDEX_SHIFT 52
#   define _OBJC_TAG_EXT_SLOT_SHIFT 52
#   define _OBJC_TAG_EXT_PAYLOAD_LSHIFT 12
#   define _OBJC_TAG_EXT_PAYLOAD_RSHIFT 12
#else
/*
    ...
*/
#endif

extern uintptr_t objc_debug_taggedpointer_obfuscator;

static inline void * _Nonnull
_objc_encodeTaggedPointer(uintptr_t ptr)
{
    return (void *)(objc_debug_taggedpointer_obfuscator ^ ptr);
}

static inline uintptr_t
_objc_decodeTaggedPointer(const void * _Nullable ptr)
{
    return (uintptr_t)ptr ^ objc_debug_taggedpointer_obfuscator;
}

static inline bool
_objc_taggedPointersEnabled(void)
{
    extern uintptr_t objc_debug_taggedpointer_mask;
    return (objc_debug_taggedpointer_mask != 0);
}

static inline void * _Nonnull
_objc_makeTaggedPointer(objc_tag_index_t tag, uintptr_t value)
{
    // PAYLOAD_LSHIFT and PAYLOAD_RSHIFT are the payload extraction shifts.
    // They are reversed here for payload insertion.

    // ASSERT(_objc_taggedPointersEnabled());
    if (tag <= OBJC_TAG_Last60BitPayload) {
        // ASSERT(((value << _OBJC_TAG_PAYLOAD_RSHIFT) >> _OBJC_TAG_PAYLOAD_LSHIFT) == value);
        uintptr_t result =
            (_OBJC_TAG_MASK |
             ((uintptr_t)tag << _OBJC_TAG_INDEX_SHIFT) |
             ((value << _OBJC_TAG_PAYLOAD_RSHIFT) >> _OBJC_TAG_PAYLOAD_LSHIFT));
        return _objc_encodeTaggedPointer(result);
    } else {
        // ASSERT(tag >= OBJC_TAG_First52BitPayload);
        // ASSERT(tag <= OBJC_TAG_Last52BitPayload);
        // ASSERT(((value << _OBJC_TAG_EXT_PAYLOAD_RSHIFT) >> _OBJC_TAG_EXT_PAYLOAD_LSHIFT) == value);
        uintptr_t result =
            (_OBJC_TAG_EXT_MASK |
             ((uintptr_t)(tag - OBJC_TAG_First52BitPayload) << _OBJC_TAG_EXT_INDEX_SHIFT) |
             ((value << _OBJC_TAG_EXT_PAYLOAD_RSHIFT) >> _OBJC_TAG_EXT_PAYLOAD_LSHIFT));
        return _objc_encodeTaggedPointer(result);
    }
}

static inline bool
_objc_isTaggedPointer(const void * _Nullable ptr)
{
    return ((uintptr_t)ptr & _OBJC_TAG_MASK) == _OBJC_TAG_MASK;
}

static inline objc_tag_index_t
_objc_getTaggedPointerTag(const void * _Nullable ptr)
{
    // ASSERT(_objc_isTaggedPointer(ptr));
    uintptr_t value = _objc_decodeTaggedPointer(ptr);
    uintptr_t basicTag = (value >> _OBJC_TAG_INDEX_SHIFT) & _OBJC_TAG_INDEX_MASK;
    uintptr_t extTag =   (value >> _OBJC_TAG_EXT_INDEX_SHIFT) & _OBJC_TAG_EXT_INDEX_MASK;
    if (basicTag == _OBJC_TAG_INDEX_MASK) {
        return (objc_tag_index_t)(extTag + OBJC_TAG_First52BitPayload);
    } else {
        return (objc_tag_index_t)basicTag;
    }
}

static inline uintptr_t
_objc_getTaggedPointerValue(const void * _Nullable ptr)
{
    // ASSERT(_objc_isTaggedPointer(ptr));
    uintptr_t value = _objc_decodeTaggedPointer(ptr);
    uintptr_t basicTag = (value >> _OBJC_TAG_INDEX_SHIFT) & _OBJC_TAG_INDEX_MASK;
    if (basicTag == _OBJC_TAG_INDEX_MASK) {
        return (value << _OBJC_TAG_EXT_PAYLOAD_LSHIFT) >> _OBJC_TAG_EXT_PAYLOAD_RSHIFT;
    } else {
        return (value << _OBJC_TAG_PAYLOAD_LSHIFT) >> _OBJC_TAG_PAYLOAD_RSHIFT;
    }
}

static inline intptr_t
_objc_getTaggedPointerSignedValue(const void * _Nullable ptr)
{
    // ASSERT(_objc_isTaggedPointer(ptr));
    uintptr_t value = _objc_decodeTaggedPointer(ptr);
    uintptr_t basicTag = (value >> _OBJC_TAG_INDEX_SHIFT) & _OBJC_TAG_INDEX_MASK;
    if (basicTag == _OBJC_TAG_INDEX_MASK) {
        return ((intptr_t)value << _OBJC_TAG_EXT_PAYLOAD_LSHIFT) >> _OBJC_TAG_EXT_PAYLOAD_RSHIFT;
    } else {
        return ((intptr_t)value << _OBJC_TAG_PAYLOAD_LSHIFT) >> _OBJC_TAG_PAYLOAD_RSHIFT;
    }
}

// OBJC_HAVE_TAGGED_POINTERS
#endif

  从这段代码中，我们可以看明白Tagged Pointer是怎么优化内存的。

1. 别名为objc_tag_index_t的枚举内，对Tagged Pointer的类型进行了细分，只有枚举中的类型可以在少量数据的情况下使用Tagged Pointer方式读写。
2. 对于iPhone设备，数据使用MSB，即大端，读写。
3. 再看创建Tagged Pointer的内联静态函数的实现，Tagged Pointer的isa根据数据类型枚举，区分数据的payloads位数，把数据放置到isa相应的位里。
4. Tagged Pointer的内存地址会被objc_debug_taggedpointer_obfuscator进行混淆，需要设置运行环境变量OBJC_DISABLE_TAG_OBFUSCATION为false才能发现Tagged Pointer的真正内存情况。
5. 从不同版本的objc4开源代码中对比，可以发现支持Tagged Pointer优化的数据类型越来越多了，内部的数据哪些bit代表的是哪些标识可以通过OBJC_MSB_TAGGED_POINTERS内定义的宏来位移获取，在优化内存这一方面，Apple真的是玩出花来了。

总结：Tagged Pointer对内存的优化，本质上，是把数据量少的变量数据存放在isa中，这时候isa就不是正常意义上的指针了，它本身就包含了数据以及数据类型等信息，在内存读写的时候，可以省略掉通过指针获取数据的步骤直接获取数据，在微观上虽然省得不多，但在宏观大量的读写内存数据的情况下，可以达到很惊人的优化效果。

2.3.2 nonpointer isa

  ISA_BITFIELD是宏，在isa.h中，是这么定义的：   nonpointer isa是在非Tagged Pointer情况下，优化数据存取的方式，可以直观地在union isa_t中看到具体的数据有什么，得益于内部的结构体（ISA_BITFIELD），我们能清楚地知道isa数据的放置情况的。

  ISA_BITFIELD是宏，在isa.h中，是这么定义的：

#ifndef _OBJC_ISA_H_
#define _OBJC_ISA_H_

#include "objc-config.h"


#if (!SUPPORT_NONPOINTER_ISA && !SUPPORT_PACKED_ISA && !SUPPORT_INDEXED_ISA) ||\
    ( SUPPORT_NONPOINTER_ISA &&  SUPPORT_PACKED_ISA && !SUPPORT_INDEXED_ISA) ||\
    ( SUPPORT_NONPOINTER_ISA && !SUPPORT_PACKED_ISA &&  SUPPORT_INDEXED_ISA)
    // good config
#else
#   error bad config
#endif


#if SUPPORT_PACKED_ISA

    // extra_rc must be the MSB-most field (so it matches carry/overflow flags)
    // nonpointer must be the LSB (fixme or get rid of it)
    // shiftcls must occupy the same bits that a real class pointer would
    // bits + RC_ONE is equivalent to extra_rc + 1
    // RC_HALF is the high bit of extra_rc (i.e. half of its range)

    // future expansion:
    // uintptr_t fast_rr : 1;     // no r/r overrides
    // uintptr_t lock : 2;        // lock for atomic property, @synch
    // uintptr_t extraBytes : 1;  // allocated with extra bytes

# if __arm64__
#   define ISA_MASK        0x0000000ffffffff8ULL
#   define ISA_MAGIC_MASK  0x000003f000000001ULL
#   define ISA_MAGIC_VALUE 0x000001a000000001ULL
#   define ISA_BITFIELD                                                      \
      uintptr_t nonpointer        : 1;                                       \
      uintptr_t has_assoc         : 1;                                       \
      uintptr_t has_cxx_dtor      : 1;                                       \
      uintptr_t shiftcls          : 33; /*MACH_VM_MAX_ADDRESS 0x1000000000*/ \
      uintptr_t magic             : 6;                                       \
      uintptr_t weakly_referenced : 1;                                       \
      uintptr_t deallocating      : 1;                                       \
      uintptr_t has_sidetable_rc  : 1;                                       \
      uintptr_t extra_rc          : 19
#   define RC_ONE   (1ULL<<45)
#   define RC_HALF  (1ULL<<18)

# elif __x86_64__

/*
    ...
*/

# else
#   error unknown architecture for packed isa
# endif

// SUPPORT_PACKED_ISA
#endif


#if SUPPORT_INDEXED_ISA

# if  __ARM_ARCH_7K__ >= 2  ||  (__arm64__ && !__LP64__)
    // armv7k or arm64_32

/*
    ...
*/

# else
#   error unknown architecture for indexed isa
# endif

// SUPPORT_INDEXED_ISA
#endif


// _OBJC_ISA_H_
#endif

  在isa.h中，对于不同平台，有不同的宏用于控制isa各个bit的意义。本文在只讨论iPhoneOS的前提下，只贴出部分，排除掉了英特尔CPU的电脑部分与运行32位的arm64架构的嵌入式设备（如Apple Watch）。

  在iOS设备中，以MSB（大端）的方式排列数据，这个结构体把64bit中的每个bit都安排得妥妥当当。

  在理解nonpointer isa前，还需要区分2个概念：

1. indexed isa
2. packed isa

  它们通过在objc-config.h中的宏控制nonpointer isa的支持：

// Define SUPPORT_INDEXED_ISA=1 on platforms that store the class in the isa
// field as an index into a class table.
// Note, keep this in sync with any .s files which also define it.
// Be sure to edit objc-abi.h as well.
#if __ARM_ARCH_7K__ >= 2  ||  (__arm64__ && !__LP64__)
#   define SUPPORT_INDEXED_ISA 1
#else
#   define SUPPORT_INDEXED_ISA 0
#endif

// Define SUPPORT_PACKED_ISA=1 on platforms that store the class in the isa
// field as a maskable pointer with other data around it.
#if (!__LP64__  ||  TARGET_OS_WIN32  ||  \
     (TARGET_OS_SIMULATOR && !TARGET_OS_IOSMAC))
#   define SUPPORT_PACKED_ISA 0
#else
#   define SUPPORT_PACKED_ISA 1
#endif

// Define SUPPORT_NONPOINTER_ISA=1 on any platform that may store something
// in the isa field that is not a raw pointer.
#if !SUPPORT_INDEXED_ISA  &&  !SUPPORT_PACKED_ISA
#   define SUPPORT_NONPOINTER_ISA 0
#else
#   define SUPPORT_NONPOINTER_ISA 1
#endif

  在iPhoneOS中，SUPPORT_PACKED_ISA为1，SUPPORT_INDEXED_ISA为0，所以SUPPORT_NONPOINTER_ISA为1，是支持nonpointer isa的，并且是packed isa。

  

  其中，真正的ISA地址只占用了64bit中的33bit，在需要获取的时候，则是通过ISA_MASK这个宏中的掩码进行与操作获取。

  其他的位代表的意思，大部分能从表面的字意明白，如果有疑惑，可以通过struct objc_object内的函数操作了解。

  从ISA_BITFIELD中，逐个查看他们的作用。

1. nonpointer，[0]bit，区分isa是否使用nonpointer isa，isa是个union，在使用nonpointer的情况下，先以0值初始化，然后根据nonpointer isa内结构体的位进行默认赋值。没有使用的情况下，isa的初始化就是正常的一个指针。在struct objc_object的私有初始化函数中可以看到其实现：

inline void
objc_object::initIsa(Class cls, bool nonpointer, bool hasCxxDtor)
{
    ASSERT(!isTaggedPointer());

    if (!nonpointer) {
        isa = isa_t((uintptr_t)cls);
    } else {
        ASSERT(!DisableNonpointerIsa);
        ASSERT(!cls->instancesRequireRawIsa());

        isa_t newisa(0);

#if SUPPORT_INDEXED_ISA
        ASSERT(cls->classArrayIndex() > 0);
        newisa.bits = ISA_INDEX_MAGIC_VALUE;
        // isa.magic is part of ISA_MAGIC_VALUE
        // isa.nonpointer is part of ISA_MAGIC_VALUE
        newisa.has_cxx_dtor = hasCxxDtor;
        newisa.indexcls = (uintptr_t)cls->classArrayIndex();
#else
        newisa.bits = ISA_MAGIC_VALUE;
        // isa.magic is part of ISA_MAGIC_VALUE
        // isa.nonpointer is part of ISA_MAGIC_VALUE
        newisa.has_cxx_dtor = hasCxxDtor;
        newisa.shiftcls = (uintptr_t)cls >> 3;
#endif

        // This write must be performed in a single store in some cases
        // (for example when realizing a class because other threads
        // may simultaneously try to use the class).
        // fixme use atomics here to guarantee single-store and to
        // guarantee memory order w.r.t. the class index table
        // ...but not too atomic because we don't want to hurt instantiation
        isa = newisa;
    }
}

1. has_assoc，[1]bit，在使用nonpointer isa的情况下，区分是否有联合对象（Association Object），相关函数如下：

inline bool
objc_object::hasAssociatedObjects()
{
    if (isTaggedPointer()) return true;
    if (isa.nonpointer) return isa.has_assoc;
    return true;
}


inline void
objc_object::setHasAssociatedObjects()
{
    if (isTaggedPointer()) return;

retry:
    isa_t oldisa = LoadExclusive(&isa.bits);
    isa_t newisa = oldisa;
    if (!newisa.nonpointer  ||  newisa.has_assoc) {
        ClearExclusive(&isa.bits);
        return;
    }
    newisa.has_assoc = true;
    if (!StoreExclusive(&isa.bits, oldisa.bits, newisa.bits)) goto retry;
}

1. has_cxx_dtor，[2]bit，在使用nonpointer isa的情况下，区分是否有C++的析构函数，出于改变isa指针、初始化与释放等场景的需要
2. shiftcls，[3]~[36]bit，在使用nonpointer isa的情况下，使用33bit空间存储指向类的指针
3. magic，[37]～[42]bit，在使用nonpointer isa的情况下，存放魔术数，也用于区分数据是否已初始化
4. weakly_referenced，[43]bit，在使用nonpointer isa的情况下，是否有被弱引用，决定释放的时候，是否需要到SideTable中处理引用问题
5. deallocating，[44]bit，在使用nonpointer isa的情况下，是否正在释放的标识位
6. has_sidetable_rc，[45]bit，在使用nonpointer isa的情况下，是否有SideTable的引用计数
7. extra_rc，[46]~[64]bit，在使用nonpointer isa的情况下，少量引用计数量的存放位，计算引用计数时加一，即（extra_rc + 1）。在引用计数超过19位能表达的值时，引用计数会移交SideTable记录，其中RC_ONE宏，是用来引用计数加一处理的，而RC_HALF则是每次引用计数溢出时，移交一半出去的量，剩余的一半依然留在extra_rc中。

  nonpointer isa这种内存优化方式只在类指针地址在提供的bit能表达的情况下使用，当指针地址超过了提供的bit能表达的数量时，就会切换为正常的指针。这些都是运行时进行的，这体现了objc提供出来的运行时特性，具体的实现函数如下：

inline Class
objc_object::changeIsa(Class newCls)
{
    // This is almost always true but there are
    // enough edge cases that we can't assert it.
    // assert(newCls->isFuture()  ||
    //        newCls->isInitializing()  ||  newCls->isInitialized());

    ASSERT(!isTaggedPointer());

    isa_t oldisa;
    isa_t newisa;

    bool sideTableLocked = false;
    bool transcribeToSideTable = false;

    do {
        transcribeToSideTable = false;
        oldisa = LoadExclusive(&isa.bits);
        if ((oldisa.bits == 0  ||  oldisa.nonpointer)  &&
            !newCls->isFuture()  &&  newCls->canAllocNonpointer())
        {
            // 0 -> nonpointer
            // nonpointer -> nonpointer
#if SUPPORT_INDEXED_ISA
            if (oldisa.bits == 0) newisa.bits = ISA_INDEX_MAGIC_VALUE;
            else newisa = oldisa;
            // isa.magic is part of ISA_MAGIC_VALUE
            // isa.nonpointer is part of ISA_MAGIC_VALUE
            newisa.has_cxx_dtor = newCls->hasCxxDtor();
            ASSERT(newCls->classArrayIndex() > 0);
            newisa.indexcls = (uintptr_t)newCls->classArrayIndex();
#else
            if (oldisa.bits == 0) newisa.bits = ISA_MAGIC_VALUE;
            else newisa = oldisa;
            // isa.magic is part of ISA_MAGIC_VALUE
            // isa.nonpointer is part of ISA_MAGIC_VALUE
            newisa.has_cxx_dtor = newCls->hasCxxDtor();
            newisa.shiftcls = (uintptr_t)newCls >> 3;
#endif
        }
        else if (oldisa.nonpointer) {
            // nonpointer -> raw pointer
            // Need to copy retain count et al to side table.
            // Acquire side table lock before setting isa to
            // prevent races such as concurrent -release.
            if (!sideTableLocked) sidetable_lock();
            sideTableLocked = true;
            transcribeToSideTable = true;
            newisa.cls = newCls;
        }
        else {
            // raw pointer -> raw pointer
            newisa.cls = newCls;
        }
    } while (!StoreExclusive(&isa.bits, oldisa.bits, newisa.bits));

    if (transcribeToSideTable) {
        // Copy oldisa's retain count et al to side table.
        // oldisa.has_assoc: nothing to do
        // oldisa.has_cxx_dtor: nothing to do
        sidetable_moveExtraRC_nolock(oldisa.extra_rc,
                                     oldisa.deallocating,
                                     oldisa.weakly_referenced);
    }

    if (sideTableLocked) sidetable_unlock();

    if (oldisa.nonpointer) {
#if SUPPORT_INDEXED_ISA
        return classForIndex(oldisa.indexcls);
#else
        return (Class)((uintptr_t)oldisa.shiftcls << 3);
#endif
    }
    else {
        return oldisa.cls;
    }
}

总结：nonpointer isa的内存优化，本质上，是缩减类指针地址在较低数值的时候在内存读写时的消耗，并不是一个正常的指向内存地址的指针，而是把类指针地址存到到isa的部分位内，并且将运行时需要的标识存放于其他位置。仅在类指针地址超过范围后，才转变为真正的指向内存地址的指针，从代码注释中看到MACH_VM_MAX_ADDRESS 0x1000000000，占用的是36bit地址位，33位的nonpointer isa类地址能处理绝大多数的场景了。这种处理极大地提高了嵌入式设备不需要大量运算的使用场景的运行效率。

2.4 objc_class

  struct objc_class继承自struct objc_object，有上述所说objc_object的所有特点。

  同时，类型指针别名为Class，它就是Objective-C中的类的数据结构体。

  结构体声明位于objc-runtime-new.h文件中，BTW，objc.h中的对外暴露的声明，使用的是此处的代码，而非runtime.h内的，注意观察宏的值。

  struct objc_class与struct objc_object的关系是双辅双成的，内部的函数实现，都有使用双方的数据，以这个作为认知前提，可以再理一下struct objc_class处理了什么。先看内部的变量：

struct objc_class : objc_object {
    // Class ISA;
    Class superclass;
    cache_t cache;             // formerly cache pointer and vtable
    class_data_bits_t bits;    // class_rw_t * plus custom rr/alloc flags

    /*
        ...
    */
}

1. ISA，来自于objc_object的私有变量，通过函数获取isa私有变量内的类指针，有2种情况：
   1. 使用nonpointer isa的情况，获取时，objc_object的ISA函数内，会通过ISA_MASK提供真正的类地址
   2. 使用正常指针的情况，获取时，objc_object的rawISA函数内获取isa的所有bit作为类的地址

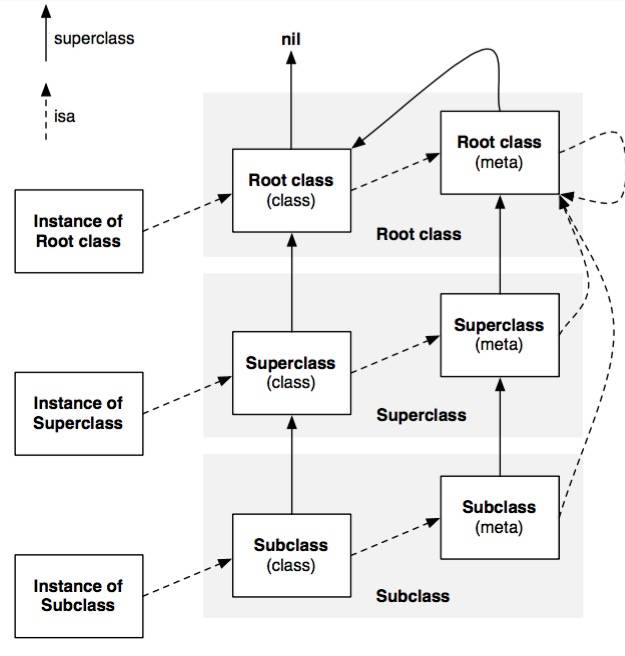

2. superclass，父类，也是objc_class，用于追溯父类的指针，关于isa的指向关系图，早有被广泛使用，如下，
   1. isa
      1. 实例对象的isa指针指向的是生成它的类，在分析isa章节的时候就提及到，使用的是initInstanceIsa函数
      2. 而类本身也是objc_object，使用的是initClassIsa函数，BTW，meta类本身也是objc_class，但不论平台是否支持isa，使用的都是rawISA，即正常的没有内存优化的指针
   2. superclass
      1. Objective-C中继承关系的实现基础，此变量的目的就是为了给objc_class追溯父类，查找父类拥有的成员（如变量、函数，协议）
      2. 当superclass为nil时，说明这个类已经是根类了
   3. isa与superclass
      1. 通过objc_object内函数的理解，知道每一个isa都是通过objc_class（别名Class）来初始化的，而因为初始化isa的函数实现也只是决定用不用和怎么用优化内存来记录objc_class的地址，所以isa其实就是个指向生成isa的那个objc_class的地址的指针，也就是图中虚线的意思
      2. 查看struct objc_class，知道继承自struct objc_object，那么每一个Class也是一个id，Objective-C中的实例对象的属性和方法并不是由struct objc_object记录的，而是生成实例对象的类，所以实例对象的isa指向了能初始化实例对象的类，即struct objc_class，这样实例对象就能查找自己有什么属性和方法了
      3. 此图的相关逻辑由一个runtime函数实现：objc_allocateClassPair，位于objc-runtime-new.mm文件中，如下，初始化时，开辟2个空间，一个是Class自己，一个是Class(meta)，接着各自设置struct objc_class内的数据，然后互相建立联系，最后添加进类表里。
         1. 在建立联系的过程中，Class调用initClassIsa函数初始化isa指针，参数是Class(meta)，所以可以很清晰地知道Class的isa指向Class(meta)
         2. 如果Class没有父Class，会分开判断，将Class(meta)内的supercls变量赋值为Class，而Class的supercls赋值为Nil，Class(meta)的isa是自己
         3. 如果Class有父Class，那么supercls就是父Class，而Class(meta)则是supercls的isa，Class(meta)的isa是父Class的Class(meta)的Class(meta)，即Root Class(meta)

static Class
alloc_class_for_subclass(Class supercls, size_t extraBytes)
{
    if (!supercls  ||  !supercls->isAnySwift()) {
        return _calloc_class(sizeof(objc_class) + extraBytes);
    }

    /*
        objc4中对Swift兼容的处理此处忽略
    */
}

// &UnsetLayout is the default ivar layout during class construction
static const uint8_t UnsetLayout = 0;

static void objc_initializeClassPair_internal(Class superclass, const char *name, Class cls, Class meta)
{
    runtimeLock.assertLocked();

    class_ro_t *cls_ro_w, *meta_ro_w;
    class_rw_t *cls_rw_w, *meta_rw_w;

    cls_rw_w   = objc::zalloc<class_rw_t>();
    meta_rw_w  = objc::zalloc<class_rw_t>();
    cls_ro_w   = (class_ro_t *)calloc(sizeof(class_ro_t), 1);
    meta_ro_w  = (class_ro_t *)calloc(sizeof(class_ro_t), 1);

    cls->setData(cls_rw_w);
    cls_rw_w->set_ro(cls_ro_w);
    meta->setData(meta_rw_w);
    meta_rw_w->set_ro(meta_ro_w);

    // Set basic info

    cls_rw_w->flags = RW_CONSTRUCTING | RW_COPIED_RO | RW_REALIZED | RW_REALIZING;
    meta_rw_w->flags = RW_CONSTRUCTING | RW_COPIED_RO | RW_REALIZED | RW_REALIZING | RW_META;

    cls_ro_w->flags = 0;
    meta_ro_w->flags = RO_META;
    if (superclass) {
        uint32_t flagsToCopy = RW_FORBIDS_ASSOCIATED_OBJECTS;
        cls_rw_w->flags |= superclass->data()->flags & flagsToCopy;
        cls_ro_w->instanceStart = superclass->unalignedInstanceSize();
        meta_ro_w->instanceStart = superclass->ISA()->unalignedInstanceSize();
        cls->setInstanceSize(cls_ro_w->instanceStart);
        meta->setInstanceSize(meta_ro_w->instanceStart);
    } else {
        cls_ro_w->flags |= RO_ROOT;
        meta_ro_w->flags |= RO_ROOT;
        cls_ro_w->instanceStart = 0;
        meta_ro_w->instanceStart = (uint32_t)sizeof(objc_class);
        cls->setInstanceSize((uint32_t)sizeof(id));  // just an isa
        meta->setInstanceSize(meta_ro_w->instanceStart);
    }

    cls_ro_w->name = strdupIfMutable(name);
    meta_ro_w->name = strdupIfMutable(name);

    cls_ro_w->ivarLayout = &UnsetLayout;
    cls_ro_w->weakIvarLayout = &UnsetLayout;

    meta->chooseClassArrayIndex();
    cls->chooseClassArrayIndex();

    // This absolutely needs to be done before addSubclass
    // as initializeToEmpty() clobbers the FAST_CACHE bits
    cls->cache.initializeToEmpty();
    meta->cache.initializeToEmpty();

#if FAST_CACHE_META
    meta->cache.setBit(FAST_CACHE_META);
#endif
    meta->setInstancesRequireRawIsa();

    // Connect to superclasses and metaclasses
    cls->initClassIsa(meta);

    if (superclass) {
        meta->initClassIsa(superclass->ISA()->ISA());
        cls->superclass = superclass;
        meta->superclass = superclass->ISA();
        addSubclass(superclass, cls);
        addSubclass(superclass->ISA(), meta);
    } else {
        meta->initClassIsa(meta);
        cls->superclass = Nil;
        meta->superclass = cls;
        addRootClass(cls);
        addSubclass(cls, meta);
    }

    addClassTableEntry(cls);
}
/***********************************************************************
* addClassTableEntry
* Add a class to the table of all classes. If addMeta is true,
* automatically adds the metaclass of the class as well.
* Locking: runtimeLock must be held by the caller.
**********************************************************************/
static void
addClassTableEntry(Class cls, bool addMeta = true)
{
    runtimeLock.assertLocked();

    // This class is allowed to be a known class via the shared cache or via
    // data segments, but it is not allowed to be in the dynamic table already.
    auto &set = objc::allocatedClasses.get();

    ASSERT(set.find(cls) == set.end());

    if (!isKnownClass(cls))
        set.insert(cls);
    if (addMeta)
        addClassTableEntry(cls->ISA(), false);
}

Class objc_allocateClassPair(Class superclass, const char *name,
                        size_t extraBytes)
{
    Class cls, meta;

    // Fail if the class name is in use.
    if (look_up_class(name, NO, NO)) return nil;

    mutex_locker_t lock(runtimeLock);

    // Fail if the class name is in use.
    // Fail if the superclass isn't kosher.
    if (getClassExceptSomeSwift(name)  ||
        !verifySuperclass(superclass, true/*rootOK*/))
    {
        return nil;
    }

    // Allocate new classes.
    cls  = alloc_class_for_subclass(superclass, extraBytes);
    meta = alloc_class_for_subclass(superclass, extraBytes);

    // fixme mangle the name if it looks swift-y?
    objc_initializeClassPair_internal(superclass, name, cls, meta);

    return cls;
}

1. cache，常用方法缓存，用于优化常用方法的寻找速度，通过struct cache_t内函数对struct bucket_t进行管理
   1. CACHE_MASK_STORAGE宏（定义位于objc-config.h中）在64位iPhoneOS中，值为 CACHE_MASK_STORAGE_HIGH_16，即高16位掩码
   2. struct cache_t，如下，与nonpointer isa的优化相似，_maskAndBuckets内保存着bucket_t的地址、4位用于msgSend的0位和16位的高位掩码，其中，16位掩码用于获取bucket的容量，同时也是bucket数量的最大值，即缓存方法数量的最大值

struct cache_t {
#if CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_OUTLINED
    /*
        ...
    */
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_HIGH_16
    explicit_atomic<uintptr_t> _maskAndBuckets;
    mask_t _mask_unused;

    // How much the mask is shifted by.
    static constexpr uintptr_t maskShift = 48;

    // Additional bits after the mask which must be zero. msgSend
    // takes advantage of these additional bits to construct the value
    // `mask << 4` from `_maskAndBuckets` in a single instruction.
    static constexpr uintptr_t maskZeroBits = 4;

    // The largest mask value we can store.
    static constexpr uintptr_t maxMask = ((uintptr_t)1 << (64 - maskShift)) - 1;

    // The mask applied to `_maskAndBuckets` to retrieve the buckets pointer.
    static constexpr uintptr_t bucketsMask = ((uintptr_t)1 << (maskShift - maskZeroBits)) - 1;

    // Ensure we have enough bits for the buckets pointer.
    static_assert(bucketsMask >= MACH_VM_MAX_ADDRESS, "Bucket field doesn't have enough bits for arbitrary pointers.");
#elif CACHE_MASK_STORAGE == CACHE_MASK_STORAGE_LOW_4
    /*
        ...
    */
#else
#error Unknown cache mask storage type.
#endif

#if __LP64__
    uint16_t _flags;
#endif
    uint16_t _occupied;

public:
    static bucket_t *emptyBuckets();

    struct bucket_t *buckets();
    mask_t mask();
    mask_t occupied();
    void incrementOccupied();
    void setBucketsAndMask(struct bucket_t *newBuckets, mask_t newMask);
    void initializeToEmpty();

    unsigned capacity();
    bool isConstantEmptyCache();
    bool canBeFreed();

/*
    忽略一些对 _flag 的处理
*/

    static size_t bytesForCapacity(uint32_t cap);
    static struct bucket_t * endMarker(struct bucket_t *b, uint32_t cap);

    void reallocate(mask_t oldCapacity, mask_t newCapacity, bool freeOld);
    void insert(Class cls, SEL sel, IMP imp, id receiver);

    static void bad_cache(id receiver, SEL sel, Class isa) __attribute__((noreturn, cold));
};

1. 缓存方法时，会调用insert函数，如下，
   1. 处理缓存的数量
   2. 根据已缓存容量调整插入后的容量大小，注意到reallocate函数，调整缓存空间大小的时候，旧的缓存不会跟随到新的缓存内的，而是会被收集释放(根据参数判断调用cache_collect_free函数)，所以每次调整缓存容量（空缓存情况除外）后，都是从0开始重新缓存方法
      1. 已有缓存为0时，不释放空缓存，替换其为初始化的INIT_CACHE_SIZE，即（1 « 2）4容量的缓存空间
      2. 已有缓存不超过容量的 3/4 时，不需要处理缓存容量空间
      3. 已有缓存超过容量的 3/4 时，容量扩充2倍，但不超过最大可缓存容量MAX_CACHE_SIZE，即（1 « 16）上面提及到的16位掩码能表达的最大值
   3. 通过循环寻找容量范围内的空位插入，如果循环结束还找不到空位插入，调用bad_cache，记录崩溃前的日志

ALWAYS_INLINE
void cache_t::insert(Class cls, SEL sel, IMP imp, id receiver)
{
#if CONFIG_USE_CACHE_LOCK
    cacheUpdateLock.assertLocked();
#else
    runtimeLock.assertLocked();
#endif

    ASSERT(sel != 0 && cls->isInitialized());

    // Use the cache as-is if it is less than 3/4 full
    mask_t newOccupied = occupied() + 1;
    unsigned oldCapacity = capacity(), capacity = oldCapacity;
    if (slowpath(isConstantEmptyCache())) {
        // Cache is read-only. Replace it.
        if (!capacity) capacity = INIT_CACHE_SIZE;
        reallocate(oldCapacity, capacity, /* freeOld */false);
    }
    else if (fastpath(newOccupied + CACHE_END_MARKER <= capacity / 4 * 3)) {
        // Cache is less than 3/4 full. Use it as-is.
    }
    else {
        capacity = capacity ? capacity * 2 : INIT_CACHE_SIZE;
        if (capacity > MAX_CACHE_SIZE) {
            capacity = MAX_CACHE_SIZE;
        }
        reallocate(oldCapacity, capacity, true);
    }

    bucket_t *b = buckets();
    mask_t m = capacity - 1;
    mask_t begin = cache_hash(sel, m);
    mask_t i = begin;

    // Scan for the first unused slot and insert there.
    // There is guaranteed to be an empty slot because the
    // minimum size is 4 and we resized at 3/4 full.
    do {
        if (fastpath(b[i].sel() == 0)) {
            incrementOccupied();
            b[i].set<Atomic, Encoded>(sel, imp, cls);
            return;
        }
        if (b[i].sel() == sel) {
            // The entry was added to the cache by some other thread
            // before we grabbed the cacheUpdateLock.
            return;
        }
    } while (fastpath((i = cache_next(i, m)) != begin));

    cache_t::bad_cache(receiver, (SEL)sel, cls);
}

1. bits，struct class_data_bits_t类型，ObjC中的类内部内容就存放在这里了，包括变量、属性、方法、遵循的协议

  struct class_data_bits_t，如下

1. struct objc_class是struct class_data_bits_t的友元结构体，可以访问内部的私有函数
2. 内嵌一个bits变量，同样是为了优化内存，通过掩码方式存放数据获
   1. [0]bit，Swift的ABI稳定前的标识位
   2. [1]bit，Swift的ABI稳定版本的标识位
   3. [2]bit, 类中有默认RR的标识位
   4. [3]~[46]bit，取class_rw_t类型的数据指针，共44位

    /*
        ...
    */

    // class is a Swift class from the pre-stable Swift ABI
    #define FAST_IS_SWIFT_LEGACY    (1UL<<0)
    // class is a Swift class from the stable Swift ABI
    #define FAST_IS_SWIFT_STABLE    (1UL<<1)
    // class or superclass has default retain/release/autorelease/retainCount/
    //   _tryRetain/_isDeallocating/retainWeakReference/allowsWeakReference
    #define FAST_HAS_DEFAULT_RR     (1UL<<2)
    // data pointer
    #define FAST_DATA_MASK          0x00007ffffffffff8UL

    /*
        ...
    */

    struct class_data_bits_t {
        friend objc_class;

        // Values are the FAST_ flags above.
        uintptr_t bits;
        /*
            ...
        */
        public:

        class_rw_t* data() const {
            return (class_rw_t *)(bits & FAST_DATA_MASK);
        }
        void setData(class_rw_t *newData)
        {
            ASSERT(!data()  ||  (newData->flags & (RW_REALIZING | RW_FUTURE)));
            // Set during realization or construction only. No locking needed.
            // Use a store-release fence because there may be concurrent
            // readers of data and data's contents.
            uintptr_t newBits = (bits & ~FAST_DATA_MASK) | (uintptr_t)newData;
            atomic_thread_fence(memory_order_release);
            bits = newBits;
        }

        // Get the class's ro data, even in the presence of concurrent realization.
        // fixme this isn't really safe without a compiler barrier at least
        // and probably a memory barrier when realizeClass changes the data field
        const class_ro_t *safe_ro() {
            class_rw_t *maybe_rw = data();
            if (maybe_rw->flags & RW_REALIZED) {
                // maybe_rw is rw
                return maybe_rw->ro();
            } else {
                // maybe_rw is actually ro
                return (class_ro_t *)maybe_rw;
            }
        }
        /*
            ...
        */
    };

  struct class_rw_t深入，如下：

1. flags，32bit的变量，用于存放类加载状态的标识，同时也根据加载状态判断以何种数据结构读取数据，其中RW_REALIZED即(1«31)用于判断类是否已经实现
2. witness，用于快速判断类是否已经加载完毕
3. firstSubclass， 记录第一个子类，在自上而下的类实现的遍历中用到
4. nextSiblingClass，记录同父类的兄弟类，同样是在自上而下的类实现的遍历中用到
5. 定义泛型objc::PointerUnion<const class_ro_t *, class_rw_ext_t *>为ro_or_rw_ext_t类型，objc::PointerUnion是个指针联合体（可以理解为同一个放地址空间的内存空间内能存放不同类型但是使用同样父类类型的指针的一个数据结构，目的是方便判断和转换类型），通过判断类的实现状态读取class_ro_t内的数据。
   1. 在类实现前，struct class_data_bits_t内的bits通过掩码获得的指针指向的就是class_ro_t，这时，class_ro_t同样存在的flag的RW_REALIZED掩码后值是0
   2. 在类实现后，struct class_data_bits_t内的bits通过掩码获得的指针指向的是class_rw_t，这时，class_rw_t的flag的RW_REALIZED掩码后值是1，读取class_ro_t内的数据需要通过class_rw_t内的函数ro调用
   3. 在编译后，class_ro_t内的数据就产生了，所以可以在类实现前就通过class_ro_t获得一些关于类的变量、方法、或协议，而在类的实现后，使用class_rw_ext_t类型，体现了runtime的特性，在运行时，会通过此类型获得类的的变量、方法、或协议

struct class_rw_t {
    // Be warned that Symbolication knows the layout of this structure.
    uint32_t flags;
    uint16_t witness;
    /*
        ...
    */
    explicit_atomic<uintptr_t> ro_or_rw_ext;

    Class firstSubclass;
    Class nextSiblingClass;

    private:
    using ro_or_rw_ext_t = objc::PointerUnion<const class_ro_t *, class_rw_ext_t *>;

    const ro_or_rw_ext_t get_ro_or_rwe() const {
        return ro_or_rw_ext_t{ro_or_rw_ext};
    }

    void set_ro_or_rwe(const class_ro_t *ro) {
        ro_or_rw_ext_t{ro}.storeAt(ro_or_rw_ext, memory_order_relaxed);
    }

    void set_ro_or_rwe(class_rw_ext_t *rwe, const class_ro_t *ro) {
        // the release barrier is so that the class_rw_ext_t::ro initialization
        // is visible to lockless readers
        rwe->ro = ro;
        ro_or_rw_ext_t{rwe}.storeAt(ro_or_rw_ext, memory_order_release);
    }

    class_rw_ext_t *extAlloc(const class_ro_t *ro, bool deep = false);

    public:

    /*
        ...
    */
}

  struct class_ro_t深入，如下，内部存放了非常多的数据，这个结构体是真正的存放ObjC中使用到的变量、属性、方法、协议等数据的地方

    struct class_ro_t {
        uint32_t flags;
        uint32_t instanceStart;
        uint32_t instanceSize;
        #ifdef __LP64__
        uint32_t reserved;
        #endif

        const uint8_t * ivarLayout;

        const char * name;
        method_list_t * baseMethodList;
        protocol_list_t * baseProtocols;
        const ivar_list_t * ivars;

        const uint8_t * weakIvarLayout;
        property_list_t *baseProperties;

        /*
            ...
        */
    };

1. flags，32bit的标识位，记录struct class_ro_t的class状态，具体标识意思可以通过位于objc-runtime-new.h内的宏查到
2. instanceStart，实例对象的起始内存位置，根类位置为0，与父类对象保持相对位置的存放关系，当父类调整了对象大小后，实例对象的起始位置也要跟着改变
3. instanceSize，实例对象的大小，子类对象会获得父类对象的大小
4. reserved，64位处理器的保留位
5. ivarLayout，记录ObjC类中强引用变量的数量（该变量主要有也有弱引用变量的数量，但是在可以忽略的情况下会忽略掉）主要是强引用的变量，在寻找变量的时候，通过对齐地址的位移，获得各个变量的索引再获取变量
6. name，类名
7. baseMethodList，entsize_list_tt迭代器泛型模版类，元素类型为method_t，提供通过元素地址获取索引的函数
8. baseProtocols，protocol_list_t类型的迭代器，相较于entsize_list_tt迭代器少了操作符重载和掩码处理，内部真正的协议数据来自protocol_ref_t类型（即实际指向struct protocol_t，如下）的数组

struct protocol_t : objc_object {
    const char *mangledName;
    struct protocol_list_t *protocols;
    method_list_t *instanceMethods;
    method_list_t *classMethods;
    method_list_t *optionalInstanceMethods;
    method_list_t *optionalClassMethods;
    property_list_t *instanceProperties;
    uint32_t size;   // sizeof(protocol_t)
    uint32_t flags;
    // Fields below this point are not always present on disk.
    const char **_extendedMethodTypes;
    const char *_demangledName;
    property_list_t *_classProperties;
    /*
        ...
    */
};

1. ivars，entsize_list_tt迭代器泛型模版类，元素类型为ivar_t，提供判断类中是否存在ivar的函数
2. weakIvarLayout，记录ObjC类中弱饮用变量的数量，与ivarLayout对应，主要是若引用的变量，在寻找变量的时候，通过对齐地址的位移，获得各个变量的索引再获取变量
3. baseProperties，entsize_list_tt迭代器泛型模版类，元素类型为property_t，只有属性名和类型描述

总结：struct objc_class在继承了struct objc_object特性的情况下，增加了对象的关系处理，

1. 通过isa与superclass联通了实例对象、类、元类，为运行时的消息转发提供了基础
2. 通过cache缓存常用方法，优化调用方法的速度
3. 通过bits存放变量、属性、方法、遵循的协议及相关的管理函数，在缓存中找不到的方法，就会在这里找

2.5 SideTable

  SideTable用于记录引用计数，通过泛型模版template<typename T> class StripedMap包装成SideTablesMap，位于Source/NSObject.mm，如下，一旦初始化就持续使用不允许释放，通过SideTables函数获取C++引用实例使用

static objc::ExplicitInit<StripedMap<SideTable>> SideTablesMap;

static StripedMap<SideTable>& SideTables() {
    return SideTablesMap.get();
}

  先看看包装用的template<typename T> class StripedMap，如下，将T替换成SideTable来看待

1. StripedMap在iPhoneOS内只有8份SideTable，objc_object的引用计数是根据指针地址的位移操作后分配进array内的
2. array内的元素是struct PaddedT，对应内部的value其实就是SideTable类型的变量，并且是64位对齐的
3. public部分有操作符重载，用于通过objc_object地址获取对象引用计数，另外还有一些加锁操作，是SideTable内的自旋锁的外部调用接口

enum { CacheLineSize = 64 };

// StripedMap<T> is a map of void* -> T, sized appropriately
// for cache-friendly lock striping.
// For example, this may be used as StripedMap<spinlock_t>
// or as StripedMap<SomeStruct> where SomeStruct stores a spin lock.
template<typename T>
class StripedMap {
#if TARGET_OS_IPHONE && !TARGET_OS_SIMULATOR
    enum { StripeCount = 8 };
#else
    /*
        ...
    */
#endif

    struct PaddedT {
        T value alignas(CacheLineSize);
    };

    PaddedT array[StripeCount];

    static unsigned int indexForPointer(const void *p) {
        uintptr_t addr = reinterpret_cast<uintptr_t>(p);
        return ((addr >> 4) ^ (addr >> 9)) % StripeCount;
    }

 public:
    T& operator[] (const void *p) {
        return array[indexForPointer(p)].value;
    }
    const T& operator[] (const void *p) const {
        return const_cast<StripedMap<T>>(this)[p];
    }

    // Shortcuts for StripedMaps of locks.
    /*
        锁操作函数
    */
};

  再来看看SideTable，如下，

// RefcountMap disguises its pointers because we
// don't want the table to act as a root for `leaks`.
typedef objc::DenseMap<DisguisedPtr<objc_object>,size_t,RefcountMapValuePurgeable> RefcountMap;

/**
 * The global weak references table. Stores object ids as keys,
 * and weak_entry_t structs as their values.
 */
struct weak_table_t {
    weak_entry_t *weak_entries;
    size_t    num_entries;
    uintptr_t mask;
    uintptr_t max_hash_displacement;
};

struct SideTable {
    spinlock_t slock;
    RefcountMap refcnts;
    weak_table_t weak_table;

    SideTable() {
        memset(&weak_table, 0, sizeof(weak_table));
    }

    ~SideTable() {
        _objc_fatal("Do not delete SideTable.");
    }

    /*
        锁操作
    */
};

1. slock对应外部调用的自旋锁
2. refcnts，引用计数，RefcountMap类型，通过泛型模版DenseMap创建，模版有5个参数，前2个是key、value，后3个对前2个补充且有默认的泛型模版
   1. RefcountMap中的key是DisguisedPtr<objc_object>，即伪装了的struct objc_object指针，
   2. RefcountMap中的value是size_t，记录引用计数的多少
3. weak_table，弱引用表，weak_table_t类型，位于objc-weak.h，相关数据结构如下：
   1. weak_entries，weak_entry_t类型，用于记录弱引用关系，
      1. 被弱引用的对象地址通过DisguisedPtr<objc_object>存储，
      2. 引用它的对象通过联合体读取，
         1. 小于4个时，使用内联数组，充分优化内存
         2. 大于4个时，使用哈希表，在iPhoneOS中，最多可记录2^62个弱引用

/*
    ...
*/

// The address of a __weak variable.
// These pointers are stored disguised so memory analysis tools
// don't see lots of interior pointers from the weak table into objects.
typedef DisguisedPtr<objc_object *> weak_referrer_t;

#if __LP64__
#define PTR_MINUS_2 62
#else
#define PTR_MINUS_2 30
#endif

/**
 * The internal structure stored in the weak references table.
 * It maintains and stores
 * a hash set of weak references pointing to an object.
 * If out_of_line_ness != REFERRERS_OUT_OF_LINE then the set
 * is instead a small inline array.
 */
#define WEAK_INLINE_COUNT 4

// out_of_line_ness field overlaps with the low two bits of inline_referrers[1].
// inline_referrers[1] is a DisguisedPtr of a pointer-aligned address.
// The low two bits of a pointer-aligned DisguisedPtr will always be 0b00
// (disguised nil or 0x80..00) or 0b11 (any other address).
// Therefore out_of_line_ness == 0b10 is used to mark the out-of-line state.
#define REFERRERS_OUT_OF_LINE 2

struct weak_entry_t {
    DisguisedPtr<objc_object> referent;
    union {
        struct {
            weak_referrer_t *referrers;
            uintptr_t        out_of_line_ness : 2;
            uintptr_t        num_refs : PTR_MINUS_2;
            uintptr_t        mask;
            uintptr_t        max_hash_displacement;
        };
        struct {
            // out_of_line_ness field is low bits of inline_referrers[1]
            weak_referrer_t  inline_referrers[WEAK_INLINE_COUNT];
        };
    };

    bool out_of_line() {
        return (out_of_line_ness == REFERRERS_OUT_OF_LINE);
    }

    weak_entry_t& operator=(const weak_entry_t& other) {
        memcpy(this, &other, sizeof(other));
        return *this;
    }

    weak_entry_t(objc_object *newReferent, objc_object **newReferrer)
        : referent(newReferent)
    {
        inline_referrers[0] = newReferrer;
        for (int i = 1; i < WEAK_INLINE_COUNT; i++) {
            inline_referrers[i] = nil;
        }
    }
};

/**
 * The global weak references table. Stores object ids as keys,
 * and weak_entry_t structs as their values.
 */
struct weak_table_t {
    weak_entry_t *weak_entries;
    size_t    num_entries;
    uintptr_t mask;
    uintptr_t max_hash_displacement;
};

/*
    ...
*/

  weak_table_t和weak_entry_t很容易搞混，它们在增删的情况下略有不同

1. weak_table_t，初始化时，容量长度为64，
   1. 扩容情况，容量超过 3/4 时扩容2倍，并且内部的weak_entry_t会从新计算哈希插入
   2. 缩减情况，容量超过1024，但在用不足 1/16 时，缩小至 1/8，即最小也不会小于初始化的64大小
2. weak_entry_t，初始化时，使用固定容量为4的数组
   1. 扩容情况，大于4时，看是否使用哈希表，如果使用哈希表，则容量超过 3/4 时扩容2倍
   2. 没有缩减情况，但会进行referer的置nil操作并数量减1，如果referer内为空了，则weak_table_t会移除掉这个weak_entry_t

总结：

  Struct SideTable是一个全局的用于记录对象引用计数的结构体，对于内存的管理

1. Tagged Pointer的isa情况下，不会使用
2. nonpointer isa情况下，先记录到extra_rc，超过时，把一半的引用计数移到SideTable
3. raw isa情况下，直接记录到SideTable中

  SideTable中的数据是根据对象地址处理后分散放到各个SideTable表StripeMap中的Array中的

1. 对于每一个强引用对象，以伪装的对象指针地址为key，引用计数为value进行记录
2. 对于每一个弱引用对象，以弱引用对象的伪装指针地址为key，以数组或者哈希表记录每个引用这个弱引用对象的伪装对象指针

3. 宏观

  从objc_object到NSObject，微入宏观，联系都在这里。

3.1 Reference count

  在ObjC中，引用计数是内存管理的一种方式，从微观中的好几个地方，都已经见识它的细节，再来看看它的宏观体现。

1. isa中的区别
   1. Tagged Pointer的isa，没有使用引用计数，有返回值的相关统一处理的代码处都会直接返回id本身
   2. nonpointer isa，先以isa中extra_rc记录引用计数，当将要溢出时，标识has_sidetable_rc，并让一半的引用计数移交SideTable记录
   3. raw isa，引用计数全由SideTable记录
2. ivar中的区别
   1. class_ro_t中，ivarLayout主要记录强引用变量的内存布局数量，弱引用的变量能忽略就忽略
   2. class_ro_t中，weakIvarLayout主要记录弱引用变量的内存布局数量，强引用的变量能忽略就忽略
   3. class_ro_t中，ivars中除了ivarLayout和weakIvarLayout中记录的布局变量外，都是不使用引用计数的变量
3. 强引用与弱引用的记录方式区别
   1. SideTable中的强引用以RefcountMap（即objc::DenseMap<DisguisedPtr<objc_object>,size_t,RefcountMapValuePurgeable>）类型记录引用计数，散列表，key为伪装对象指针，value为引用计数
   2. SideTable中的弱引用以weak_table_t（即struct weak_table_t）类型记录引用计数，内部维护weak_entry_t，散列表，referent（DisguisedPtr<objc_object>）是被引用的对象实例（理解为value）的伪装对象指针，referer(weak_referrer_t，也是DisguisedPtr<objc_object *>)是弱引用容器指针地址（指向弱引用指针地址的指针），可通过如下代码简单理解，

/*
    假设初始化传递的String参数为不是 Tagged Pointer isa的其他类强引用了的字符串对象实例
    @property 关键字包含 ivar + getter + setter
    那么
    ivar _rawISAString 就是 referer
    参数string 就是 referent
*/
@interface ZObject : NSObject
@property (weak) NSString *rawISAString;
@end

@implement ZObject
- (id)initWithString:(NSString *)string {
    self = [super init];
    if (self) {
        self.rawISAString = string;
    }
    return self;
}
@end

3.2 SEL & IMP

  从微观上看一个ObjC类，即struct objc_class，方法的本质是SEL和IMP，它们在class_ro_t中被method_list_t类型的变量（即列表）管理，列表元素是struct method_t，SEL与IMP（即MethodListIMP）就在内部，代码如下：

struct method_t {
    SEL name;
    const char *types;
    MethodListIMP imp;

    struct SortBySELAddress :
        public std::binary_function<const method_t&,
                                    const method_t&, bool>
    {
        bool operator() (const method_t& lhs,
                         const method_t& rhs)
        { return lhs.name < rhs.name; }
    };
};

  在宏观上来看，方法在被调用时，会被缓存到objc_class的cache中。而从方法调用的角度上看，ObjC中的方法调用被叫作消息发送，原因可看message.h内的代码：

#include <objc/objc.h>
#include <objc/runtime.h>

/*
    ...
*/


/* Basic Messaging Primitives
 *
 * On some architectures, use objc_msgSend_stret for some struct return types.
 * On some architectures, use objc_msgSend_fpret for some float return types.
 * On some architectures, use objc_msgSend_fp2ret for some float return types.
 *
 * These functions must be cast to an appropriate function pointer type
 * before being called.
 */
#if !OBJC_OLD_DISPATCH_PROTOTYPES
/*
    ...
*/
#else
/**
 * Sends a message with a simple return value to an instance of a class.
 *
 * @param self A pointer to the instance of the class that is to receive the message.
 * @param op The selector of the method that handles the message.
 * @param ...
 *   A variable argument list containing the arguments to the method.
 *
 * @return The return value of the method.
 *
 * @note When it encounters a method call, the compiler generates a call to one of the
 *  functions \c objc_msgSend, \c objc_msgSend_stret, \c objc_msgSendSuper, or \c objc_msgSendSuper_stret.
 *  Messages sent to an object’s superclass (using the \c super keyword) are sent using \c objc_msgSendSuper;
 *  other messages are sent using \c objc_msgSend. Methods that have data structures as return values
 *  are sent using \c objc_msgSendSuper_stret and \c objc_msgSend_stret.
 */
OBJC_EXPORT id _Nullable
objc_msgSend(id _Nullable self, SEL _Nonnull op, ...)
    OBJC_AVAILABLE(10.0, 2.0, 9.0, 1.0, 2.0);
/**
 * Sends a message with a simple return value to the superclass of an instance of a class.
 *
 * @param super A pointer to an \c objc_super data structure. Pass values identifying the
 *  context the message was sent to, including the instance of the class that is to receive the
 *  message and the superclass at which to start searching for the method implementation.
 * @param op A pointer of type SEL. Pass the selector of the method that will handle the message.
 * @param ...
 *   A variable argument list containing the arguments to the method.
 *
 * @return The return value of the method identified by \e op.
 *
 * @see objc_msgSend
 */
OBJC_EXPORT id _Nullable
objc_msgSendSuper(struct objc_super * _Nonnull super, SEL _Nonnull op, ...)
    OBJC_AVAILABLE(10.0, 2.0, 9.0, 1.0, 2.0);
#endif

  注释中可以看到objc_msgSend函数的参数

1. id，消息接收者，通过实例对象的isa可找到objc_class
2. SEL，方法选择器，从id中找到的objc_class中的class_ro_t寻找配对的SEL
3. 不定参数，对应消失发送时的参数

  再看objc_msgSendSuper函数，与objc_msgSend不同的是，首个参数是struct objc_super * _Nonnull super，本质上相同，只是多了从实例对象的类中再找父类，但是消息接收的目标还是与objc_msgSend相同的实例对象自己。这也是ObjC中super关键字的调用中为什么与self关键字打印想通实例对象的原因（消息接收者相同）。

#ifndef OBJC_SUPER
#define OBJC_SUPER

/// Specifies the superclass of an instance.
struct objc_super {
    /// Specifies an instance of a class.
    __unsafe_unretained _Nonnull id receiver;

    /// Specifies the particular superclass of the instance to message.
#if !defined(__cplusplus)  &&  !__OBJC2__
    /* For compatibility with old objc-runtime.h header */
    __unsafe_unretained _Nonnull Class class;
#else
    __unsafe_unretained _Nonnull Class super_class;
#endif
    /* super_class is the first class to search */
};
#endif

  深入看objc_msgSend的实现，在源码中，实现是汇编语言写的，最好找arm手册对着看指令，这里不纠结具体寄存器的作用，只关注逻辑，objc-msg-arm64.s中调用IMP比较核心的步骤如下：

1. _objc_msgSend
2. CacheLookup
3. TailCallCachedImp

  配合上NSObject中消息的分发机制，成就了消息发送的特性

3.3 Property

  在ARC中，@property关键字在编译器编译时，会生成ivar+getter+setter，并且在setter中处理引用计数（即按照关键字情况调用objc_retain和objc_release）。

  位于objc-accesors.mm中，有对应于各个关键字的实现：

id objc_getProperty(id self, SEL _cmd, ptrdiff_t offset, BOOL atomic) {
    if (offset == 0) {
        return object_getClass(self);
    }

    // Retain release world
    id *slot = (id*) ((char*)self + offset);
    if (!atomic) return *slot;

    // Atomic retain release world
    spinlock_t& slotlock = PropertyLocks[slot];
    slotlock.lock();
    id value = objc_retain(*slot);
    slotlock.unlock();

    // for performance, we (safely) issue the autorelease OUTSIDE of the spinlock.
    return objc_autoreleaseReturnValue(value);
}


static inline void reallySetProperty(id self, SEL _cmd, id newValue, ptrdiff_t offset, bool atomic, bool copy, bool mutableCopy) __attribute__((always_inline));

static inline void reallySetProperty(id self, SEL _cmd, id newValue, ptrdiff_t offset, bool atomic, bool copy, bool mutableCopy)
{
    if (offset == 0) {
        object_setClass(self, newValue);
        return;
    }

    id oldValue;
    id *slot = (id*) ((char*)self + offset);

    if (copy) {
        newValue = [newValue copyWithZone:nil];
    } else if (mutableCopy) {
        newValue = [newValue mutableCopyWithZone:nil];
    } else {
        if (*slot == newValue) return;
        newValue = objc_retain(newValue);
    }

    if (!atomic) {
        oldValue = *slot;
        *slot = newValue;
    } else {
        spinlock_t& slotlock = PropertyLocks[slot];
        slotlock.lock();
        oldValue = *slot;
        *slot = newValue;
        slotlock.unlock();
    }

    objc_release(oldValue);
}

void objc_setProperty(id self, SEL _cmd, ptrdiff_t offset, id newValue, BOOL atomic, signed char shouldCopy)
{
    bool copy = (shouldCopy && shouldCopy != MUTABLE_COPY);
    bool mutableCopy = (shouldCopy == MUTABLE_COPY);
    reallySetProperty(self, _cmd, newValue, offset, atomic, copy, mutableCopy);
}

void objc_setProperty_atomic(id self, SEL _cmd, id newValue, ptrdiff_t offset)
{
    reallySetProperty(self, _cmd, newValue, offset, true, false, false);
}

void objc_setProperty_nonatomic(id self, SEL _cmd, id newValue, ptrdiff_t offset)
{
    reallySetProperty(self, _cmd, newValue, offset, false, false, false);
}


void objc_setProperty_atomic_copy(id self, SEL _cmd, id newValue, ptrdiff_t offset)
{
    reallySetProperty(self, _cmd, newValue, offset, true, true, false);
}

void objc_setProperty_nonatomic_copy(id self, SEL _cmd, id newValue, ptrdiff_t offset)
{
    reallySetProperty(self, _cmd, newValue, offset, false, true, false);
}

1. atomic和nonatomic，原子性关键字，从get和set相应函数中发现，atomic时，会加锁，相应地会损耗性能
2. copy和mutableCopy，这些关键字的get函数相同，set函数根据情况不同传递不同参数给reallySetProperty函数进行设置，新实例对象会引用计数加一，旧的实例对象减一
3. strong，强引用关键字，调用的是id objc_autoreleaseReturnValue(id obj)和void objc_storeStrong(id *location, id obj)，copy和mutableCopy最后都会调用想同的函数，但最终的本质都是objc_retain和objc_release
4. weak，弱引用关键字，调用的是id objc_loadWeak(id *location)和id objc_storeWeak(id *location, id newObj)，

3.4 Extension & Category

  Extension与Category都是ObjC中的特性，为这门语言提供了更多灵活。

  先来看异同：

1. 参与时：Extension在编译时，Category在运行时
2. ivar：Extension可添加ivar，Category只能通过Association Object达到相同效果，这是由objc_class中的数据结构实现决定的
3. @implementation：Extension没有自己独立的实现部分，Category有自己独立的实现部分
4. 添加限制：Extension不能添加到不可修改的代码中运行，Category可添加到不可修改的代码中运行

  再看看Category的实现：

struct locstamped_category_t {
    category_t *cat;
    struct header_info *hi;
};

struct category_t {
    const char *name;
    classref_t cls;
    struct method_list_t *instanceMethods;
    struct method_list_t *classMethods;
    struct protocol_list_t *protocols;
    struct property_list_t *instanceProperties;
    // Fields below this point are not always present on disk.
    struct property_list_t *_classProperties;

    method_list_t *methodsForMeta(bool isMeta) {
        if (isMeta) return classMethods;
        else return instanceMethods;
    }

    property_list_t *propertiesForMeta(bool isMeta, struct header_info *hi);

    protocol_list_t *protocolsForMeta(bool isMeta) {
        if (isMeta) return nullptr;
        else return protocols;
    }
};

class category_list : nocopy_t {
    union {
        locstamped_category_t lc;
        struct {
            locstamped_category_t *array;
            // this aliases with locstamped_category_t::hi
            // which is an aliased pointer
            uint32_t is_array :  1;
            uint32_t count    : 31;
            uint32_t size     : 32;
        };
    } _u;

public:
    category_list() : _u { }
    category_list(locstamped_category_t lc) : _u { }
    category_list(category_list &&other) : category_list() {
        std::swap(_u, other._u);
    }
    ~category_list()
    {
        if (_u.is_array) {
            free(_u.array);
        }
    }

    uint32_t count() const
    {
        if (_u.is_array) return _u.count;
        return _u.lc.cat ? 1 : 0;
    }

    uint32_t arrayByteSize(uint32_t size) const
    {
        return sizeof(locstamped_category_t) * size;
    }

    const locstamped_category_t *array() const
    {
        return _u.is_array ? _u.array : &_u.lc;
    }

    void append(locstamped_category_t lc)
    {
        if (_u.is_array) {
            if (_u.count == _u.size) {
                // Have a typical malloc growth:
                // - size <=  8: grow by 2
                // - size <= 16: grow by 4
                // - size <= 32: grow by 8
                // ... etc
                _u.size += _u.size < 8 ? 2 : 1 << (fls(_u.size) - 2);
                _u.array = (locstamped_category_t *)reallocf(_u.array, arrayByteSize(_u.size));
            }
            _u.array[_u.count++] = lc;
        } else if (_u.lc.cat == NULL) {
            _u.lc = lc;
        } else {
            locstamped_category_t *arr = (locstamped_category_t *)malloc(arrayByteSize(2));
            arr[0] = _u.lc;
            arr[1] = lc;

            _u.array = arr;
            _u.is_array = true;
            _u.count = 2;
            _u.size = 2;
        }
    }

    void erase(category_t *cat)
    {
        if (_u.is_array) {
            for (int i = 0; i < _u.count; i++) {
                if (_u.array[i].cat == cat) {
                    // shift entries to preserve list order
                    memmove(&_u.array[i], &_u.array[i+1], arrayByteSize(_u.count - i - 1));
                    return;
                }
            }
        } else if (_u.lc.cat == cat) {
            _u.lc.cat = NULL;
            _u.lc.hi = NULL;
        }
    }
};

1. category_list内的联合体_u，和weak_entry_t相似，量少的时候单独处理，量大的时候使用散列表处理，内部函数也通过字节位判断区分处理
2. category_t内记录了一个类可能存在的所有变量列表，这些类型，在微观的发掘中已经遇到过，就不展开了，并且在处理时，会区分是否元类来处理

  Category是在镜像加载的时候处理的，顺序比普通类迟，所以只要有Category重写了原类中的方法，那么Category中的实现就会覆盖原类中的，如果有多个Category重写同一个方法，按照顺序就是最后加载的Category的那个实现为准（这里引申了一个问题，假如二进制重排的order文件内的类顺序调整成与编译顺序不同，那最终的实现以哪个为准？XD）。

3.5 Association object

  Association object，关联对象，通常在Category中用于创建property用到，因为Category与原类的加载时间不一样，所以原类内存中ivar的空间无法为了category中的property开辟空间，于是为了实现运行时的特性，就有了Association object。

  先看看get和set函数，ChainedHookFunction是个泛型模版，SetAssocHook类内封装了设置关联对象的函数。

id
objc_getAssociatedObject(id object, const void *key)
{
    return _object_get_associative_reference(object, key);
}

static ChainedHookFunction<objc_hook_setAssociatedObject> SetAssocHook{_base_objc_setAssociatedObject};

void
objc_setAssociatedObject(id object, const void *key, id value, objc_AssociationPolicy policy)
{
    SetAssocHook.get()(object, key, value, policy);
}

void objc_removeAssociatedObjects(id object)
{
    if (object && object->hasAssociatedObjects()) {
        _object_remove_assocations(object);
    }
}

  再看内部的实现，位于objc-references.mm，如下：

#include "objc-private.h"
#include <objc/message.h>
#include <map>
#include "DenseMapExtras.h"

// expanded policy bits.

enum {
    OBJC_ASSOCIATION_SETTER_ASSIGN      = 0,
    OBJC_ASSOCIATION_SETTER_RETAIN      = 1,
    OBJC_ASSOCIATION_SETTER_COPY        = 3,            // NOTE:  both bits are set, so we can simply test 1 bit in releaseValue below.
    OBJC_ASSOCIATION_GETTER_READ        = (0 << 8),
    OBJC_ASSOCIATION_GETTER_RETAIN      = (1 << 8),
    OBJC_ASSOCIATION_GETTER_AUTORELEASE = (2 << 8)
};

spinlock_t AssociationsManagerLock;

namespace objc {

class ObjcAssociation {
    uintptr_t _policy;
    id _value;
public:
    ObjcAssociation(uintptr_t policy, id value) : _policy(policy), _value(value) {}
    ObjcAssociation() : _policy(0), _value(nil) {}
    ObjcAssociation(const ObjcAssociation &other) = default;
    ObjcAssociation &operator=(const ObjcAssociation &other) = default;
    ObjcAssociation(ObjcAssociation &&other) : ObjcAssociation() {
        swap(other);
    }

    inline void swap(ObjcAssociation &other) {
        std::swap(_policy, other._policy);
        std::swap(_value, other._value);
    }

    inline uintptr_t policy() const { return _policy; }
    inline id value() const { return _value; }

    inline void acquireValue() {
        if (_value) {
            switch (_policy & 0xFF) {
            case OBJC_ASSOCIATION_SETTER_RETAIN:
                _value = objc_retain(_value);
                break;
            case OBJC_ASSOCIATION_SETTER_COPY:
                _value = ((id(*)(id, SEL))objc_msgSend)(_value, @selector(copy));
                break;
            }
        }
    }

    inline void releaseHeldValue() {
        if (_value && (_policy & OBJC_ASSOCIATION_SETTER_RETAIN)) {
            objc_release(_value);
        }
    }

    inline void retainReturnedValue() {
        if (_value && (_policy & OBJC_ASSOCIATION_GETTER_RETAIN)) {
            objc_retain(_value);
        }
    }

    inline id autoreleaseReturnedValue() {
        if (slowpath(_value && (_policy & OBJC_ASSOCIATION_GETTER_AUTORELEASE))) {
            return objc_autorelease(_value);
        }
        return _value;
    }
};

typedef DenseMap<const void *, ObjcAssociation> ObjectAssociationMap;
typedef DenseMap<DisguisedPtr<objc_object>, ObjectAssociationMap> AssociationsHashMap;

// class AssociationsManager manages a lock / hash table singleton pair.
// Allocating an instance acquires the lock

class AssociationsManager {
    using Storage = ExplicitInitDenseMap<DisguisedPtr<objc_object>, ObjectAssociationMap>;
    static Storage _mapStorage;

public:
    AssociationsManager()   { AssociationsManagerLock.lock(); }
    ~AssociationsManager()  { AssociationsManagerLock.unlock(); }

    AssociationsHashMap &get() {
        return _mapStorage.get();
    }

    static void init() {
        _mapStorage.init();
    }
};

AssociationsManager::Storage AssociationsManager::_mapStorage;

} // namespace objc

using namespace objc;

void
_objc_associations_init()
{
    AssociationsManager::init();
}

id
_object_get_associative_reference(id object, const void *key)
{
    ObjcAssociation association{};

    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.get());
        AssociationsHashMap::iterator i = associations.find((objc_object *)object);
        if (i != associations.end()) {
            ObjectAssociationMap &refs = i->second;
            ObjectAssociationMap::iterator j = refs.find(key);
            if (j != refs.end()) {
                association = j->second;
                association.retainReturnedValue();
            }
        }
    }

    return association.autoreleaseReturnedValue();
}

void
_object_set_associative_reference(id object, const void *key, id value, uintptr_t policy)
{
    // This code used to work when nil was passed for object and key. Some code
    // probably relies on that to not crash. Check and handle it explicitly.
    // rdar://problem/44094390
    if (!object && !value) return;

    if (object->getIsa()->forbidsAssociatedObjects())
        _objc_fatal("objc_setAssociatedObject called on instance (%p) of class %s which does not allow associated objects", object, object_getClassName(object));

    DisguisedPtr<objc_object> disguised{(objc_object *)object};
    ObjcAssociation association{policy, value};

    // retain the new value (if any) outside the lock.
    association.acquireValue();

    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.get());

        if (value) {
            auto refs_result = associations.try_emplace(disguised, ObjectAssociationMap{});
            if (refs_result.second) {
                /* it's the first association we make */
                object->setHasAssociatedObjects();
            }

            /* establish or replace the association */
            auto &refs = refs_result.first->second;
            auto result = refs.try_emplace(key, std::move(association));
            if (!result.second) {
                association.swap(result.first->second);
            }
        } else {
            auto refs_it = associations.find(disguised);
            if (refs_it != associations.end()) {
                auto &refs = refs_it->second;
                auto it = refs.find(key);
                if (it != refs.end()) {
                    association.swap(it->second);
                    refs.erase(it);
                    if (refs.size() == 0) {
                        associations.erase(refs_it);

                    }
                }
            }
        }
    }

    // release the old value (outside of the lock).
    association.releaseHeldValue();
}

// Unlike setting/getting an associated reference,
// this function is performance sensitive because of
// raw isa objects (such as OS Objects) that can't track
// whether they have associated objects.
void
_object_remove_assocations(id object)
{
    ObjectAssociationMap refs{};

    {
        AssociationsManager manager;
        AssociationsHashMap &associations(manager.get());
        AssociationsHashMap::iterator i = associations.find((objc_object *)object);
        if (i != associations.end()) {
            refs.swap(i->second);
            associations.erase(i);
        }
    }

    // release everything (outside of the lock).
    for (auto &i: refs) {
        i.second.releaseHeldValue();
    }
}

  关联对象内在实现其实是class AssociationsManager的函数调用，其中管理内存的也是散列表，并且进行了套娃，数据关系如下：

1. AssociationsHashMap，key是DisguisedPtr<objc_object>，value是ObjectAssociationMap
2. ObjectAssociationMap，key是const void *，value是ObjcAssociation（内有策略与值）

  套娃的散列表各有指向，在处理关联对象的时候，也会根据内存策略来判断引用方式，同时对于isa，也会标识出是否有关联对象。

3.6 Autoreleasepool

  自动释放池是ObjC中处理释放内存的机制，而在每个工程的入口文件main.m中，我们也能看到它的存在，即:

@autoreleasepool {}

  这是在ARC中的自动释放池使用方式，它的本质是成对地调用了下面的函数：

void *
objc_autoreleasePoolPush(void)
{
    return AutoreleasePoolPage::push();
}

NEVER_INLINE
void
objc_autoreleasePoolPop(void *ctxt)
{
    AutoreleasePoolPage::pop(ctxt);
}

  这样就引申出了class AutoreleasePoolPage这个类，这是个按页分离的双向链表，先来看看类中的情况：

/***********************************************************************
   Autorelease pool implementation

   A thread's autorelease pool is a stack of pointers.
   Each pointer is either an object to release, or POOL_BOUNDARY which is
     an autorelease pool boundary.
   A pool token is a pointer to the POOL_BOUNDARY for that pool. When
     the pool is popped, every object hotter than the sentinel is released.
   The stack is divided into a doubly-linked list of pages. Pages are added
     and deleted as necessary.
   Thread-local storage points to the hot page, where newly autoreleased
     objects are stored.
**********************************************************************/

/*
    ...
*/

class AutoreleasePoolPage : private AutoreleasePoolPageData
{
	friend struct thread_data_t;

public:
	static size_t const SIZE =
#if PROTECT_AUTORELEASEPOOL
		PAGE_MAX_SIZE;  // must be multiple of vm page size
#else
		PAGE_MIN_SIZE;  // size and alignment, power of 2
#endif

private:
	static pthread_key_t const key = AUTORELEASE_POOL_KEY;
	static uint8_t const SCRIBBLE = 0xA3;  // 0xA3A3A3A3 after releasing
	static size_t const COUNT = SIZE / sizeof(id);

    // EMPTY_POOL_PLACEHOLDER is stored in TLS when exactly one pool is
    // pushed and it has never contained any objects. This saves memory
    // when the top level (i.e. libdispatch) pushes and pops pools but
    // never uses them.
#   define EMPTY_POOL_PLACEHOLDER ((id*)1)

#   define POOL_BOUNDARY nil

    // SIZE-sizeof(*this) bytes of contents follow

    static void * operator new(size_t size) {
        return malloc_zone_memalign(malloc_default_zone(), SIZE, SIZE);
    }
    static void operator delete(void * p) {
        return free(p);
    }

/*
    ...
*/

}

  从注释、变量与初始化函数中，可以先了解到一些自动释放池的设计

1. 自动释放池只与当前线程相关，并且内部会以栈的方式记录需要释放的实例对象指针，并且struct thread_data_t是友元结构体
2. 池中的存放实例对象指针前需要先把POOL_BOUNDARY，即nil入栈，用于做栈中的边界，也称作哨兵(sentinel)
3. 自动释放池的每一页大小为PAGE_MIN_SIZE，即 1 << 12（定义于vm_param.h中），也就是4096字节，在new的时候就已经固定开辟了内存空间大小了

  深入查看私有继承的struct AutoreleasePoolPageData，如下：

struct magic_t {
	static const uint32_t M0 = 0xA1A1A1A1;
#   define M1 "AUTORELEASE!"
	static const size_t M1_len = 12;
	uint32_t m[4];

	magic_t() {
		ASSERT(M1_len == strlen(M1));
		ASSERT(M1_len == 3 * sizeof(m[1]));

		m[0] = M0;
		strncpy((char *)&m[1], M1, M1_len);
	}

	~magic_t() {
		// Clear magic before deallocation.
		// This prevents some false positives in memory debugging tools.
		// fixme semantically this should be memset_s(), but the
		// compiler doesn't optimize that at all (rdar://44856676).
		volatile uint64_t *p = (volatile uint64_t *)m;
		p[0] = 0; p[1] = 0;
	}

	bool check() const {
		return (m[0] == M0 && 0 == strncmp((char *)&m[1], M1, M1_len));
	}

	bool fastcheck() const {
#if CHECK_AUTORELEASEPOOL
		return check();
#else
		return (m[0] == M0);
#endif
	}

#   undef M1
};

class AutoreleasePoolPage;
struct AutoreleasePoolPageData
{
	magic_t const magic;
	__unsafe_unretained id *next;
	pthread_t const thread;
	AutoreleasePoolPage * const parent;
	AutoreleasePoolPage *child;
	uint32_t const depth;
	uint32_t hiwat;

	AutoreleasePoolPageData(__unsafe_unretained id* _next, pthread_t _thread, AutoreleasePoolPage* _parent, uint32_t _depth, uint32_t _hiwat)
		: magic(), next(_next), thread(_thread),
		  parent(_parent), child(nil),
		  depth(_depth), hiwat(_hiwat)
	{
	}
};

  因class AutoreleasePoolPage的继承，使它拥有了内部的私有变量，这里以元数据进行代称

1. 经过计算，class AutoreleasePoolPage的元数据占用内存空间为 56 Bytes，那么可用于存放自动释放池中的实例对象指针的空间大小就是 「4096 - 56 = 4040」Bytes，即 505 个指向struct objc_object的指针
2. 元数据解释
   1. magic，struct magic_t类型，人为用来标识自动释放池内存页是否正常的结构
   2. next，id类型，自动释放池中的实例对象存储的栈顶指针
   3. thread，pthread_t类型，当前线程
   4. parent，AutoreleasePoolPage类型，双向链表的前一个指向
   5. child，AutoreleasePoolPage类型，双向链表的后一个指向
   6. depth，uint32_t类型，当前节点在双向链表中的深度
   7. hiwat，uint32_t类型，high water，所有自动释放池实际占用了的内存容量

  回归到调用流程，以下为class AutoreleasePoolPage中自动释放池会调用到的函数：

class AutoreleasePoolPage : private AutoreleasePoolPageData
{

    /*
        前面已经描述的部分，这里忽略
    */

    template<typename Fn>
    void
    busted(Fn log) const
    {
        magic_t right;
        log("autorelease pool page %p corrupted\n"
             "  magic     0x%08x 0x%08x 0x%08x 0x%08x\n"
             "  should be 0x%08x 0x%08x 0x%08x 0x%08x\n"
             "  pthread   %p\n"
             "  should be %p\n",
             this,
             magic.m[0], magic.m[1], magic.m[2], magic.m[3],
             right.m[0], right.m[1], right.m[2], right.m[3],
             this->thread, objc_thread_self());
    }

    __attribute__((noinline, cold, noreturn))
    void
    busted_die() const
    {
        busted(_objc_fatal);
        __builtin_unreachable();
    }

    inline void
    check(bool die = true) const
    {
        if (!magic.check() || thread != objc_thread_self()) {
            if (die) {
                busted_die();
            } else {
                busted(_objc_inform);
            }
        }
    }

    inline void
    fastcheck() const
    {
#if CHECK_AUTORELEASEPOOL
        check();
#else
        if (! magic.fastcheck()) {
            busted_die();
        }
#endif
    }


    id * begin() {
        return (id *) ((uint8_t *)this+sizeof(*this));
    }

    id * end() {
        return (id *) ((uint8_t *)this+SIZE);
    }

    bool empty() {
        return next == begin();
    }

    bool full() {
        return next == end();
    }

    bool lessThanHalfFull() {
        return (next - begin() < (end() - begin()) / 2);
    }

    id *add(id obj)
    {
        ASSERT(!full());
        unprotect();
        id *ret = next;  // faster than `return next-1` because of aliasing
        *next++ = obj;
        protect();
        return ret;
    }

    void releaseAll()
    {
        releaseUntil(begin());
    }

    void releaseUntil(id *stop)
    {
        // Not recursive: we don't want to blow out the stack
        // if a thread accumulates a stupendous amount of garbage

        while (this->next != stop) {
            // Restart from hotPage() every time, in case -release
            // autoreleased more objects
            AutoreleasePoolPage *page = hotPage();

            // fixme I think this `while` can be `if`, but I can't prove it
            while (page->empty()) {
                page = page->parent;
                setHotPage(page);
            }

            page->unprotect();
            id obj = *--page->next;
            memset((void*)page->next, SCRIBBLE, sizeof(*page->next));
            page->protect();

            if (obj != POOL_BOUNDARY) {
                objc_release(obj);
            }
        }

        setHotPage(this);

#if DEBUG
        // we expect any children to be completely empty
        for (AutoreleasePoolPage *page = child; page; page = page->child) {
            ASSERT(page->empty());
        }
#endif
    }

    void kill()
    {
        // Not recursive: we don't want to blow out the stack
        // if a thread accumulates a stupendous amount of garbage
        AutoreleasePoolPage *page = this;
        while (page->child) page = page->child;

        AutoreleasePoolPage *deathptr;
        do {
            deathptr = page;
            page = page->parent;
            if (page) {
                page->unprotect();
                page->child = nil;
                page->protect();
            }
            delete deathptr;
        } while (deathptr != this);
    }

    static void tls_dealloc(void *p)
    {
        if (p == (void*)EMPTY_POOL_PLACEHOLDER) {
            // No objects or pool pages to clean up here.
            return;
        }

        // reinstate TLS value while we work
        setHotPage((AutoreleasePoolPage *)p);

        if (AutoreleasePoolPage *page = coldPage()) {
            if (!page->empty()) objc_autoreleasePoolPop(page->begin());  // pop all of the pools
            if (slowpath(DebugMissingPools || DebugPoolAllocation)) {
                // pop() killed the pages already
            } else {
                page->kill();  // free all of the pages
            }
        }

        // clear TLS value so TLS destruction doesn't loop
        setHotPage(nil);
    }

    static AutoreleasePoolPage *pageForPointer(const void *p)
    {
        return pageForPointer((uintptr_t)p);
    }

    static AutoreleasePoolPage *pageForPointer(uintptr_t p)
    {
        AutoreleasePoolPage *result;
        uintptr_t offset = p % SIZE;

        ASSERT(offset >= sizeof(AutoreleasePoolPage));

        result = (AutoreleasePoolPage *)(p - offset);
        result->fastcheck();

        return result;
    }


    static inline bool haveEmptyPoolPlaceholder()
    {
        id *tls = (id *)tls_get_direct(key);
        return (tls == EMPTY_POOL_PLACEHOLDER);
    }

    static inline id* setEmptyPoolPlaceholder()
    {
        ASSERT(tls_get_direct(key) == nil);
        tls_set_direct(key, (void *)EMPTY_POOL_PLACEHOLDER);
        return EMPTY_POOL_PLACEHOLDER;
    }

    static inline AutoreleasePoolPage *hotPage()
    {
        AutoreleasePoolPage *result = (AutoreleasePoolPage *)
            tls_get_direct(key);
        if ((id *)result == EMPTY_POOL_PLACEHOLDER) return nil;
        if (result) result->fastcheck();
        return result;
    }

    static inline void setHotPage(AutoreleasePoolPage *page)
    {
        if (page) page->fastcheck();
        tls_set_direct(key, (void *)page);
    }

    static inline AutoreleasePoolPage *coldPage()
    {
        AutoreleasePoolPage *result = hotPage();
        if (result) {
            while (result->parent) {
                result = result->parent;
                result->fastcheck();
            }
        }
        return result;
    }


    static inline id *autoreleaseFast(id obj)
    {
        AutoreleasePoolPage *page = hotPage();
        if (page && !page->full()) {
            return page->add(obj);
        } else if (page) {
            return autoreleaseFullPage(obj, page);
        } else {
            return autoreleaseNoPage(obj);
        }
    }

    static __attribute__((noinline))
    id *autoreleaseFullPage(id obj, AutoreleasePoolPage *page)
    {
        // The hot page is full.
        // Step to the next non-full page, adding a new page if necessary.
        // Then add the object to that page.
        ASSERT(page == hotPage());
        ASSERT(page->full()  ||  DebugPoolAllocation);

        do {
            if (page->child) page = page->child;
            else page = new AutoreleasePoolPage(page);
        } while (page->full());

        setHotPage(page);
        return page->add(obj);
    }

    static __attribute__((noinline))
    id *autoreleaseNoPage(id obj)
    {
        // "No page" could mean no pool has been pushed
        // or an empty placeholder pool has been pushed and has no contents yet
        ASSERT(!hotPage());

        bool pushExtraBoundary = false;
        if (haveEmptyPoolPlaceholder()) {
            // We are pushing a second pool over the empty placeholder pool
            // or pushing the first object into the empty placeholder pool.
            // Before doing that, push a pool boundary on behalf of the pool
            // that is currently represented by the empty placeholder.
            pushExtraBoundary = true;
        }
        else if (obj != POOL_BOUNDARY  &&  DebugMissingPools) {
            // We are pushing an object with no pool in place,
            // and no-pool debugging was requested by environment.
            _objc_inform("MISSING POOLS: (%p) Object %p of class %s "
                         "autoreleased with no pool in place - "
                         "just leaking - break on "
                         "objc_autoreleaseNoPool() to debug",
                         objc_thread_self(), (void*)obj, object_getClassName(obj));
            objc_autoreleaseNoPool(obj);
            return nil;
        }
        else if (obj == POOL_BOUNDARY  &&  !DebugPoolAllocation) {
            // We are pushing a pool with no pool in place,
            // and alloc-per-pool debugging was not requested.
            // Install and return the empty pool placeholder.
            return setEmptyPoolPlaceholder();
        }

        // We are pushing an object or a non-placeholder'd pool.

        // Install the first page.
        AutoreleasePoolPage *page = new AutoreleasePoolPage(nil);
        setHotPage(page);

        // Push a boundary on behalf of the previously-placeholder'd pool.
        if (pushExtraBoundary) {
            page->add(POOL_BOUNDARY);
        }

        // Push the requested object or pool.
        return page->add(obj);
    }


    static __attribute__((noinline))
    id *autoreleaseNewPage(id obj)
    {
        AutoreleasePoolPage *page = hotPage();
        if (page) return autoreleaseFullPage(obj, page);
        else return autoreleaseNoPage(obj);
    }

public:
    static inline id autorelease(id obj)
    {
        ASSERT(obj);
        ASSERT(!obj->isTaggedPointer());
        id *dest __unused = autoreleaseFast(obj);
        ASSERT(!dest  ||  dest == EMPTY_POOL_PLACEHOLDER  ||  *dest == obj);
        return obj;
    }


    static inline void *push()
    {
        id *dest;
        if (slowpath(DebugPoolAllocation)) {
            // Each autorelease pool starts on a new pool page.
            dest = autoreleaseNewPage(POOL_BOUNDARY);
        } else {
            dest = autoreleaseFast(POOL_BOUNDARY);
        }
        ASSERT(dest == EMPTY_POOL_PLACEHOLDER || *dest == POOL_BOUNDARY);
        return dest;
    }

    __attribute__((noinline, cold))
    static void badPop(void *token)
    {
        // Error. For bincompat purposes this is not
        // fatal in executables built with old SDKs.

        if (DebugPoolAllocation || sdkIsAtLeast(10_12, 10_0, 10_0, 3_0, 2_0)) {
            // OBJC_DEBUG_POOL_ALLOCATION or new SDK. Bad pop is fatal.
            _objc_fatal
                ("Invalid or prematurely-freed autorelease pool %p.", token);
        }

        // Old SDK. Bad pop is warned once.
        static bool complained = false;
        if (!complained) {
            complained = true;
            _objc_inform_now_and_on_crash
                ("Invalid or prematurely-freed autorelease pool %p. "
                 "Set a breakpoint on objc_autoreleasePoolInvalid to debug. "
                 "Proceeding anyway because the app is old "
                 "(SDK version " SDK_FORMAT "). Memory errors are likely.",
                     token, FORMAT_SDK(sdkVersion()));
        }
        objc_autoreleasePoolInvalid(token);
    }

    template<bool allowDebug>
    static void
    popPage(void *token, AutoreleasePoolPage *page, id *stop)
    {
        if (allowDebug && PrintPoolHiwat) printHiwat();

        page->releaseUntil(stop);

        // memory: delete empty children
        if (allowDebug && DebugPoolAllocation  &&  page->empty()) {
            // special case: delete everything during page-per-pool debugging
            AutoreleasePoolPage *parent = page->parent;
            page->kill();
            setHotPage(parent);
        } else if (allowDebug && DebugMissingPools  &&  page->empty()  &&  !page->parent) {
            // special case: delete everything for pop(top)
            // when debugging missing autorelease pools
            page->kill();
            setHotPage(nil);
        } else if (page->child) {
            // hysteresis: keep one empty child if page is more than half full
            if (page->lessThanHalfFull()) {
                page->child->kill();
            }
            else if (page->child->child) {
                page->child->child->kill();
            }
        }
    }

    __attribute__((noinline, cold))
    static void
    popPageDebug(void *token, AutoreleasePoolPage *page, id *stop)
    {
        popPage<true>(token, page, stop);
    }

    static inline void
    pop(void *token)
    {
        AutoreleasePoolPage *page;
        id *stop;
        if (token == (void*)EMPTY_POOL_PLACEHOLDER) {
            // Popping the top-level placeholder pool.
            page = hotPage();
            if (!page) {
                // Pool was never used. Clear the placeholder.
                return setHotPage(nil);
            }
            // Pool was used. Pop its contents normally.
            // Pool pages remain allocated for re-use as usual.
            page = coldPage();
            token = page->begin();
        } else {
            page = pageForPointer(token);
        }

        stop = (id *)token;
        if (*stop != POOL_BOUNDARY) {
            if (stop == page->begin()  &&  !page->parent) {
                // Start of coldest page may correctly not be POOL_BOUNDARY:
                // 1. top-level pool is popped, leaving the cold page in place
                // 2. an object is autoreleased with no pool
            } else {
                // Error. For bincompat purposes this is not
                // fatal in executables built with old SDKs.
                return badPop(token);
            }
        }

        if (slowpath(PrintPoolHiwat || DebugPoolAllocation || DebugMissingPools)) {
            return popPageDebug(token, page, stop);
        }

        return popPage<false>(token, page, stop);
    }

    static void init()
    {
        int r __unused = pthread_key_init_np(AutoreleasePoolPage::key,
                                             AutoreleasePoolPage::tls_dealloc);
        ASSERT(r == 0);
    }


    /*
        打印函数部分的代码忽略
    */

#undef POOL_BOUNDARY
};

  即使忽略了部分，代码部分也还是有点长，这里从入栈到出栈的角度进行描述（push -> pop）

1. 初始化处理：static inline void *push()，就是void *objc_autoreleasePoolPush(void)中的实现，在正常的设备运行流程中，调用static inline id *autoreleaseFast(id obj)函数，参数是POOL_BOUNDARY，然后返回EMPTY_POOL_PLACEHOLDER，即自动释放池空占位符
2. 入栈前处理：按照入栈场景有3种情况
   1. 已初始化自动释放池页，且页内栈不满：直接将实例对象入栈
   2. 已初始化自动释放池页，但栈已满的情况下：通过双向链表遍历，找到不满的自动释放池页（如果都是满的，就新建一页），并设置为hotPage（当前线程处理中的页，tls，即Thread Local Storage），最后将实例对象入栈
   3. 自动释放池页未初始化的情况下（这是最完整的自动释放池页入栈流程），先查当前线程是否有空的内存释放池占位符EMPTY_POOL_PLACEHOLDER
      1. 没有且没有打开自动释放池调试环境变量，则会先设置并返回这个内存释放池占位符EMPTY_POOL_PLACEHOLDER
      2. 有就代表自动释放池页是空栈，在创建了第一个自动释放池页并设置为hotPage后，如果知道这是空栈，那么页中的栈低就需要添加一个哨兵（sentinel，即POOL_BOUNDARY，也就是nil）对象，用于标识栈底，最后将实例对象入栈
3. 入栈时处理：通过id *add(id obj)函数入栈，并将栈顶指针next指向刚入栈的实例对象
4. 出栈前处理：static inline void pop(void *token)，就是void _objc_autoreleasePoolPop(void *ctxt)中的实现，函数的参数对应追踪可知，是实例对象在入栈后的栈顶，在出栈函数调用时，需要通过栈顶找到自动释放池页，此处也分3种情况
   1. token是自动释放池占位符，即栈是空的
      1. 如果从未有实例对象入栈，那就是空的，置空hotPage，不需要更多处理（这种情况通常是花括号里为空的时候）
      2. 如果已有实例对象入栈，但是在自动释放池结束前已经出栈，就准备在codePage内出栈，直到begin，可以理解为第一个自动释放池内全部出栈，直到空栈（不包括哨兵POOL_BOUNDARY），空栈后自动释放池页仍会保留作重用
   2. token不是自动释放池占位符，栈内有需要实例对象指针，通过static AutoreleasePoolPage *pageForPointer(uintptr_t p) 与token获得自动释放池页，此处需要注意一个当前版本设计得非常精妙的处理
      1. 在首次调用push函数的时候，因为需要初始化自动释放池页，所以走的是autoreleaseNoPage(POOL_BOUNDARY)，返回的是内存释放池占位符EMPTY_POOL_PLACEHOLDER，即((id*)1)
      2. 这个内存释放池占位符EMPTY_POOL_PLACEHOLDER指向的地址是没有数据的，所以在pop函数内部的stop = (id *)token;获得的值与POOL_BOUNDARY相同，为nil，所以接下来想通的出栈操作不相悖
5. 出栈时处理：通过template<bool allowDebug> static void popPage(void *token, AutoreleasePoolPage *page, id *stop)函数同时处理出栈与自动释放池页的删除
   1. 首先用releaseUntil循环出栈每一个池子中的实例对象指针，需要注意的是循环内单独判断了哨兵不出栈，并且因为哨兵POOL_BOUNDARY的值为nil，所以出栈操作是以SCRIBBLE，即0xA3来赋值，字面意思是涂掉
   2. 然后判断当前自动释放池页的容量，如果少于一半就删除双向链表中的下个节点，否则保留
6. 除了日常写代码时接触到的自动释放池使用，在Runloop中也有调用，其释放调用的是static void tls_dealloc(void *p) ，具体细节在CF篇章再深究

4. ObjC初始化流程

  对于微观与宏观，再来一次串联，看ObjC的初始化过程中的处理：

/***********************************************************************
* _objc_init
* Bootstrap initialization. Registers our image notifier with dyld.
* Called by libSystem BEFORE library initialization time
**********************************************************************/

void _objc_init(void)
{
    static bool initialized = false;
    if (initialized) return;
    initialized = true;

    // fixme defer initialization until an objc-using image is found?
    environ_init();
    tls_init();
    static_init();
    runtime_init();
    exception_init();
    cache_init();
    _imp_implementationWithBlock_init();

    _dyld_objc_notify_register(&map_images, load_images, unmap_image);

#if __OBJC2__
    didCallDyldNotifyRegister = true;
#endif
}

1. environ_init()，初始化运行时环境变量，环境变量在objc-env.h中有列出，遍历并根据布尔值处理

// Settings from environment variables
#define OPTION(var, env, help) bool var = false;
#include "objc-env.h"
#undef OPTION

struct option_t {
    bool* var;
    const char *env;
    const char *help;
    size_t envlen;
};

const option_t Settings[] = {
#define OPTION(var, env, help) option_t{&var, #env, help, strlen(#env)},
#include "objc-env.h"
#undef OPTION
};

1. tls_init()，Thread Local Storage的初始化

void tls_init(void)
{
#if SUPPORT_DIRECT_THREAD_KEYS
    pthread_key_init_np(TLS_DIRECT_KEY, &_objc_pthread_destroyspecific);
#else
    _objc_pthread_key = tls_create(&_objc_pthread_destroyspecific);
#endif
}

1. static_init()，C++静态构造函数的初始化

/***********************************************************************
* static_init
* Run C++ static constructor functions.
* libc calls _objc_init() before dyld would call our static constructors,
* so we have to do it ourselves.
**********************************************************************/
static void static_init()
{
    size_t count;
    auto inits = getLibobjcInitializers(&_mh_dylib_header, &count);
    for (size_t i = 0; i < count; i++) {
        inits[i]();
    }
}

1. runtime_init()，运行时初始化，Category和ObjC类的表初始化

class UnattachedCategories : public ExplicitInitDenseMap<Class, category_list> { /* ... */ }
static UnattachedCategories unattachedCategories;

/***********************************************************************
* allocatedClasses
* A table of all classes (and metaclasses) which have been allocated
* with objc_allocateClassPair.
**********************************************************************/
namespace objc {
static ExplicitInitDenseSet<Class> allocatedClasses;
}

void runtime_init(void)
{
    objc::unattachedCategories.init(32);
    objc::allocatedClasses.init();
}

1. exception_init()，异常处理初始化，本质是指定异常处理的函数

/***********************************************************************
* _objc_terminate
* Custom std::terminate handler.
*
* The uncaught exception callback is implemented as a std::terminate handler.
* 1. Check if there's an active exception
* 2. If so, check if it's an Objective-C exception
* 3. If so, call our registered callback with the object.
* 4. Finally, call the previous terminate handler.
**********************************************************************/
static void (*old_terminate)(void) = nil;
static void _objc_terminate(void)
{
    if (PrintExceptions) {
        _objc_inform("EXCEPTIONS: terminating");
    }

    if (! __cxa_current_exception_type()) {
        // No current exception.
        (*old_terminate)();
    }
    else {
        // There is a current exception. Check if it's an objc exception.
        @try {
            __cxa_rethrow();
        } @catch (id e) {
            // It's an objc object. Call Foundation's handler, if any.
            (*uncaught_handler)((id)e);
            (*old_terminate)();
        } @catch (...) {
            // It's not an objc object. Continue to C++ terminate.
            (*old_terminate)();
        }
    }
}
/***********************************************************************
* exception_init
* Initialize libobjc's exception handling system.
* Called by map_images().
**********************************************************************/
void exception_init(void)
{
    old_terminate = std::set_terminate(&_objc_terminate);
}

1. cache_init()，缓存初始化，iPhone设备中HAVE_TASK_RESTARTABLE_RANGES为1

// Define HAVE_TASK_RESTARTABLE_RANGES to enable usage of
// task_restartable_ranges_synchronize()
#if TARGET_OS_SIMULATOR || defined(__i386__) || defined(__arm__) || !TARGET_OS_MAC
#   define HAVE_TASK_RESTARTABLE_RANGES 0
#else
#   define HAVE_TASK_RESTARTABLE_RANGES 1
#endif

void cache_init()
{
#if HAVE_TASK_RESTARTABLE_RANGES
    mach_msg_type_number_t count = 0;
    kern_return_t kr;

    while (objc_restartableRanges[count].location) {
        count++;
    }

    kr = task_restartable_ranges_register(mach_task_self(),
                                          objc_restartableRanges, count);
    if (kr == KERN_SUCCESS) return;
    _objc_fatal("task_restartable_ranges_register failed (result 0x%x: %s)",
                kr, mach_error_string(kr));
#endif // HAVE_TASK_RESTARTABLE_RANGES
}

1. _imp_implementationWithBlock_init()，在iphoneOS中没处理

/// Initialize the trampoline machinery. Normally this does nothing, as
/// everything is initialized lazily, but for certain processes we eagerly load
/// the trampolines dylib.
void
_imp_implementationWithBlock_init(void)
{
#if TARGET_OS_OSX
    // Eagerly load libobjc-trampolines.dylib in certain processes. Some
    // programs (most notably QtWebEngineProcess used by older versions of
    // embedded Chromium) enable a highly restrictive sandbox profile which
    // blocks access to that dylib. If anything calls
    // imp_implementationWithBlock (as AppKit has started doing) then we'll
    // crash trying to load it. Loading it here sets it up before the sandbox
    // profile is enabled and blocks it.
    //
    // This fixes EA Origin (rdar://problem/50813789)
    // and Steam (rdar://problem/55286131)
    if (__progname &&
        (strcmp(__progname, "QtWebEngineProcess") == 0 ||
         strcmp(__progname, "Steam Helper") == 0)) {
        Trampolines.Initialize();
    }
#endif
}

1. _dyld_objc_notify_register(&map_images, load_images, unmap_image)，调用dyld提供的API，参数是函数指针，用于调用map_images、load_images和unmap_image函数

  这里再对宏观中的几个表做一个入口总览，在首次初始化镜像的时候，初始化流程会先把3个用于管理内存的散列表初始化，调用顺序如下：

1. void map_images(unsigned count, const char * const paths[], const struct mach_header * const mhdrs[])
2. void map_images_nolock(unsigned mhCount, const char * const mhPaths[], const struct mach_header * const mhdrs[])
3. void arr_init(void)

  void arr_init(void) 函数中有对AutoreleasePoolPage、SideTableMap和AssociationsManager的初始化，它们都是统一用于管理各方面的散列表，首次初始化镜像时初始化构成了管理运行时内存的基础

void arr_init(void)
{
    AutoreleasePoolPage::init();
    SideTablesMap.init();
    _objc_associations_init();
}
